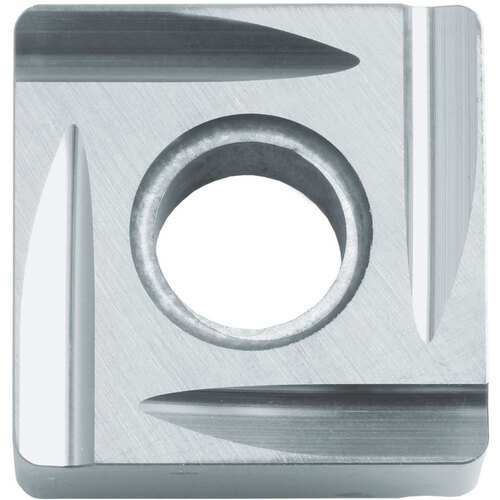

SNGG 322 B TN60, 1/32″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, TiCN/NbC, 90 Degree Square, Turning Indexable Insert
Turning Insert; Square x 3/8″ IC × 1/32″ Corner Radius ; TN60 ; Cermet ; | TiCN | NbC |
| Applicable Material | | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.15″ |
| Application | Boring | Chamfering | External Turning | Facing | Tool Type | Turning Insert |
| Insert Style | SNGG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 8 |
| Insert Size | 322 | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | B |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Cermet | Shape | Square |
| Coating | | TiCN | NbC | | Series/List # | ISOI |
| Grade | TN60 | Model No | 8802550 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.064
