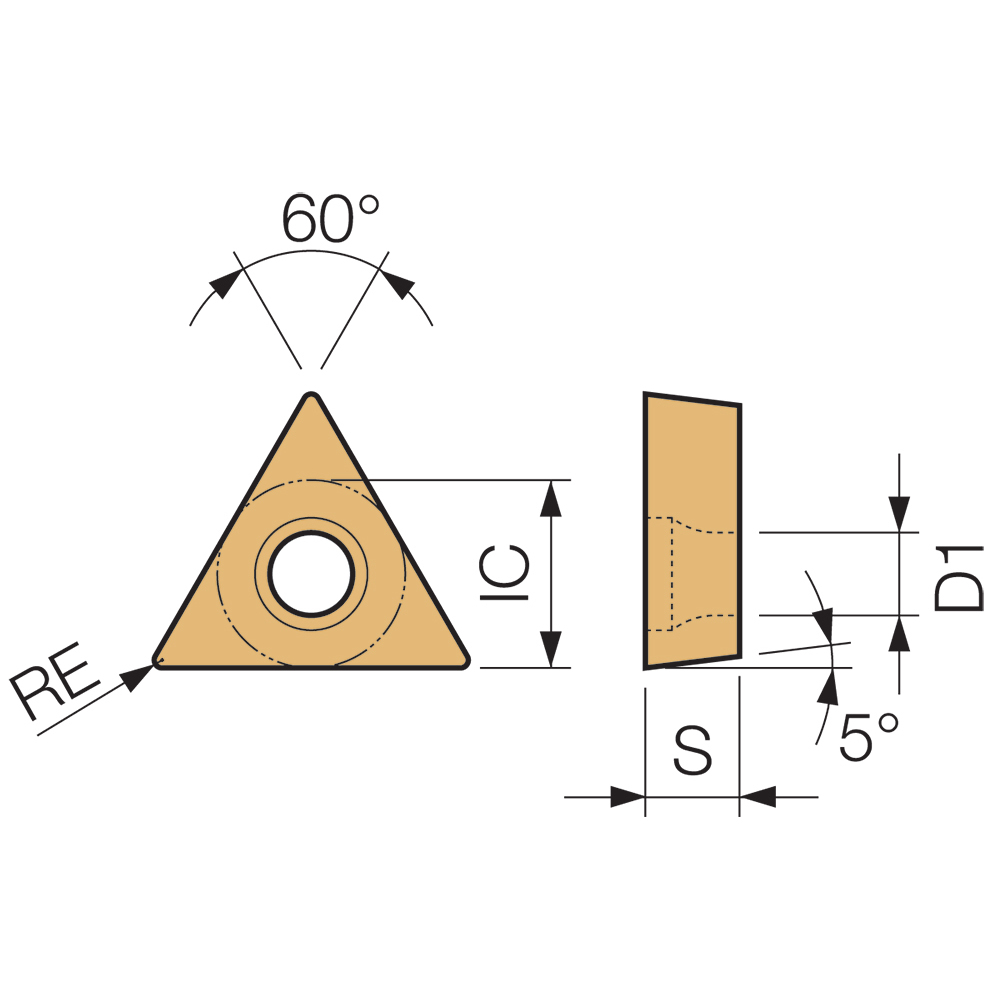

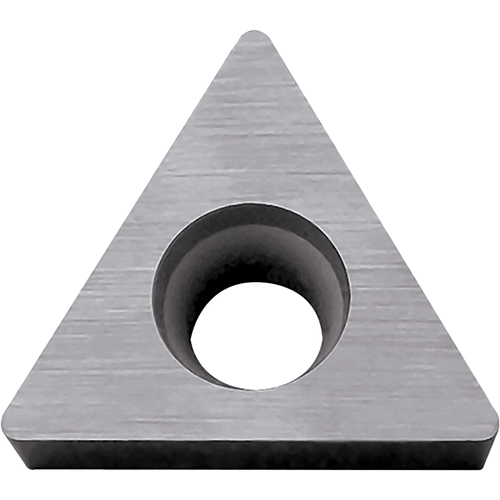

TBGW 12105 TN60, 0.008″ Corner Radius, 1/16″ Thick, 5/32″ Inscribed Circle, TiCN/NbC, 60 Degree Triangle, Turning Indexable Insert
Turning Insert; 60 Triangle × 5/32″ IC × 0.008″ Corner Radius ; TN60 ; Cermet ; | TiCN | NbC |
| Applicable Material | | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.0906″ |
| Application | Back Boring | Boring | Copying | Internal Facing | Tool Type | Turning Insert |
| Insert Style | TBGW | Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 0.008″ | Number of Cutting Edges | 3 |
| Insert Size | 12105 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/16″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 5/32″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Cermet | Series/List # | ISOI |
| Coating | | TiCN | NbC | | Model No | 8813972 |
| Grade | TN60 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.055
