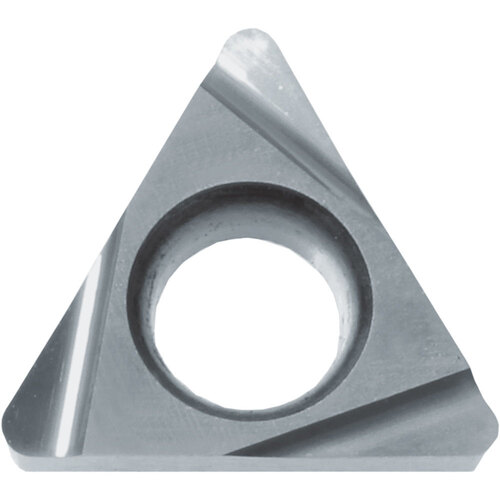

TBGT 1211 TN60, 1/64″ Corner Radius, 1/16″ Thick, 5/32″ Inscribed Circle, TiCN/NbC, 60 Degree Triangle, Turning Indexable Insert
Turning Insert; 60 Triangle × 5/32″ IC × 1/64″ Corner Radius ; TN60 ; Cermet ; | TiCN | NbC |
| Applicable Material | | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.0906″ |
| Application | Back Boring | Boring | Copying | Internal Facing | Tool Type | Turning Insert |
| Insert Style | TBGT | Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 3 |
| Insert Size | 1211 | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 1/16″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 5/32″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Cermet | Series/List # | ISOI |
| Coating | | TiCN | NbC | | Model No | 8807933 |
| Grade | TN60 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.032
