WPMT 2151 HQ CCX, 1/64″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, TiCl2O3/Tin, 80 Degree Trigon, Turning Indexable Insert
Turning Insert; 80 Trigon × 1/4″ IC × 1/64″ Corner Radius ; CCX ; Cermet ; | Al2O3 | TiN | TiCN |

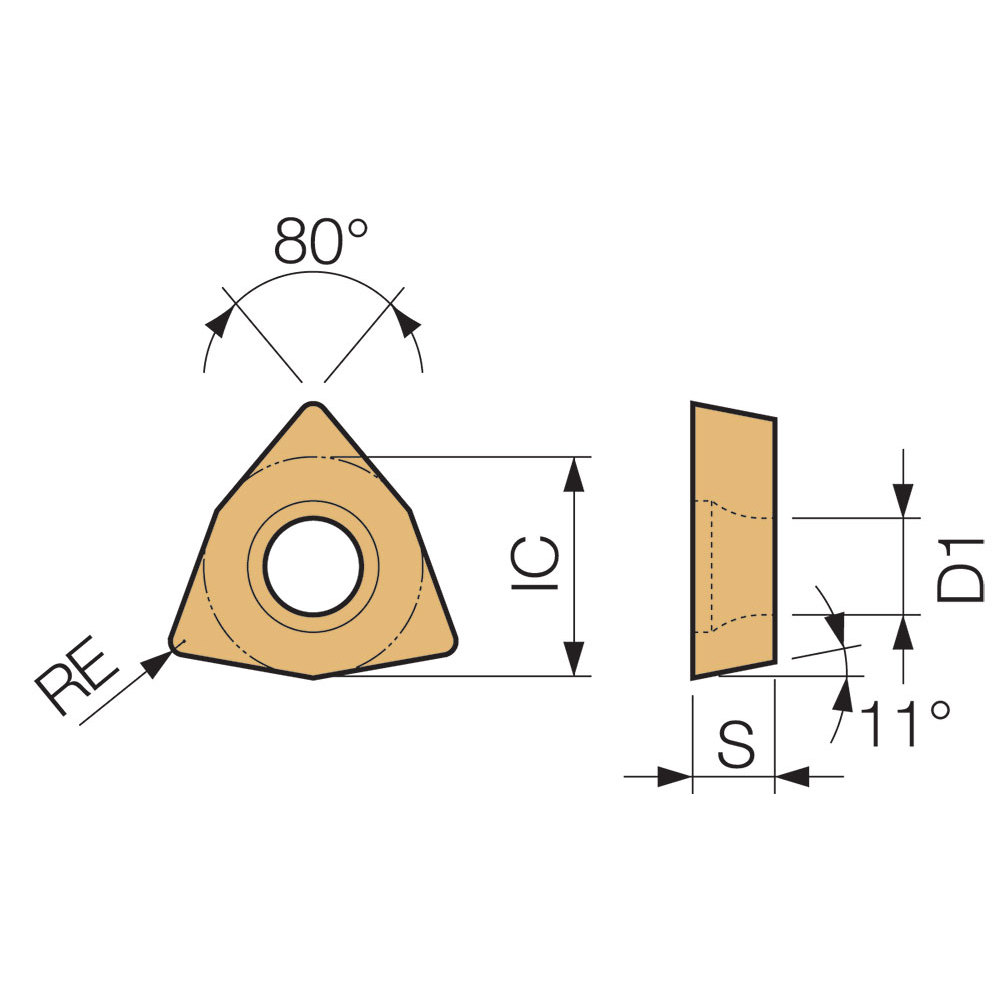

| Applicable Material | | Cast Iron | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.1102″ |
| Application | Boring | Tool Type | Turning Insert |
| Insert Style | WPMT | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 3 |
| Insert Size | 2151 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ | Chip Breaker Type | HQ |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Cermet | Shape | 80° Trigon |
| Coating | | Al2O3 | TiN | TiCN | | Series/List # | ISOI |
| Grade | CCX | Model No | 8864322 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.042
