DNMM 432 PX CA025P, 1/32″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, TiCl2O3/TiN, 55 Degree Diamond, Turning Indexable Insert
Turning Insert; 55 Diamond × 1/2″ IC × 1/32″ Corner Radius ; CA025P ; Carbide ; | Al2O3 | TiN | TiCN |

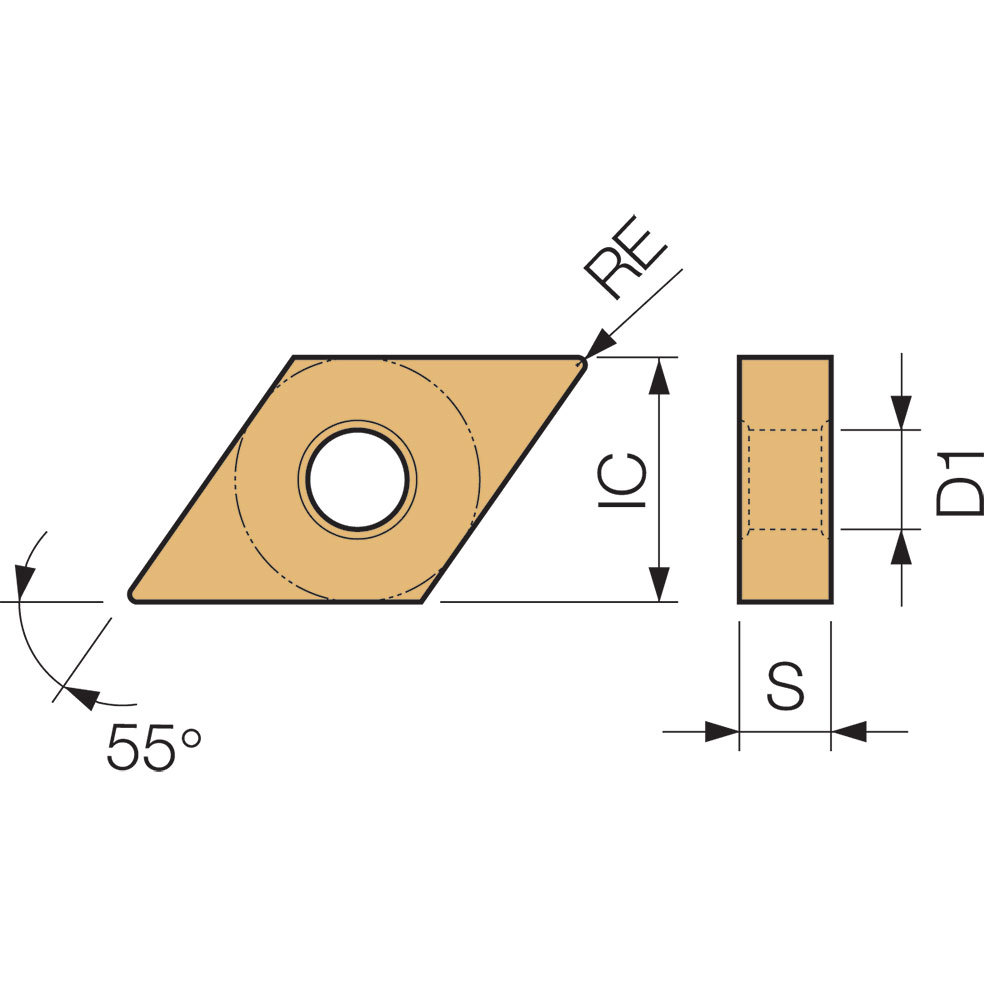

| Applicable Material | | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.2032″ |
| Application | Boring | Copying | External Turning | Tool Type | Turning Insert |
| Insert Style | DNMM | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 2 |
| Insert Size | 432 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | PX |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 55 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 55° Diamond |
| Coating | | Al2O3 | TiN | TiCN | | Series/List # | ISOI |
| Grade | CA025P | Model No | 8860453 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.295
