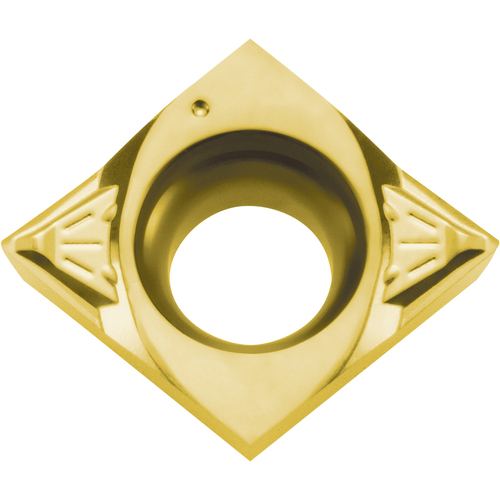

CCGT 325013 SKS PV730, 0.002″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, TiAlN/TiN, 80 Degree Diamond, Turning Indexable Insert
Turning Insert; 80 Diamond × 3/8″ IC × 0.002″ Corner Radius ; PV730 ; Cermet ; TiAlN
| Applicable Material | | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.1732″ |
| Application | Boring | External Turning | Facing | Internal Facing | Sub-Spindle | Tool Type | Turning Insert |
| Insert Style | CCGT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.002″ | Number of Cutting Edges | 2 |
| Insert Size | 325013 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 5/32″ | Chip Breaker Type | SKS |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Cermet | Shape | 80° Diamond |
| Coating | TiAlN | Series/List # | ISOI |
| Grade | PV730 | Model No | 8865779 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.065
