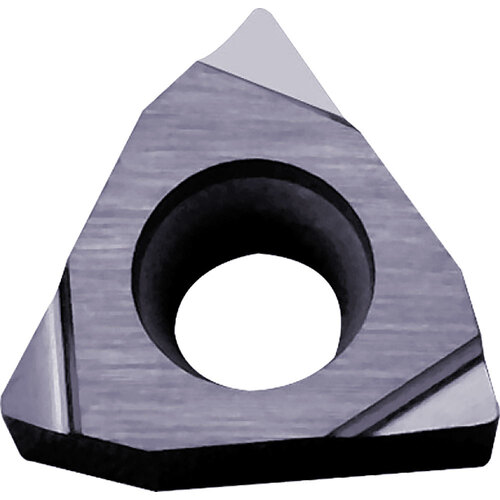

WBET 12102 F PR1705, 0.004″ Corner Radius, 1/16″ Thick, 5/32″ Inscribed Circle, MEGACOAT NANO PLUS, 80 Degree Trigon, Turning Indexable Insert
Turning Insert; 80 Trigon × 5/32″ IC × 0.004″ Corner Radius ; PR1705 ; Carbide ; MEGACOAT NANO PLUS

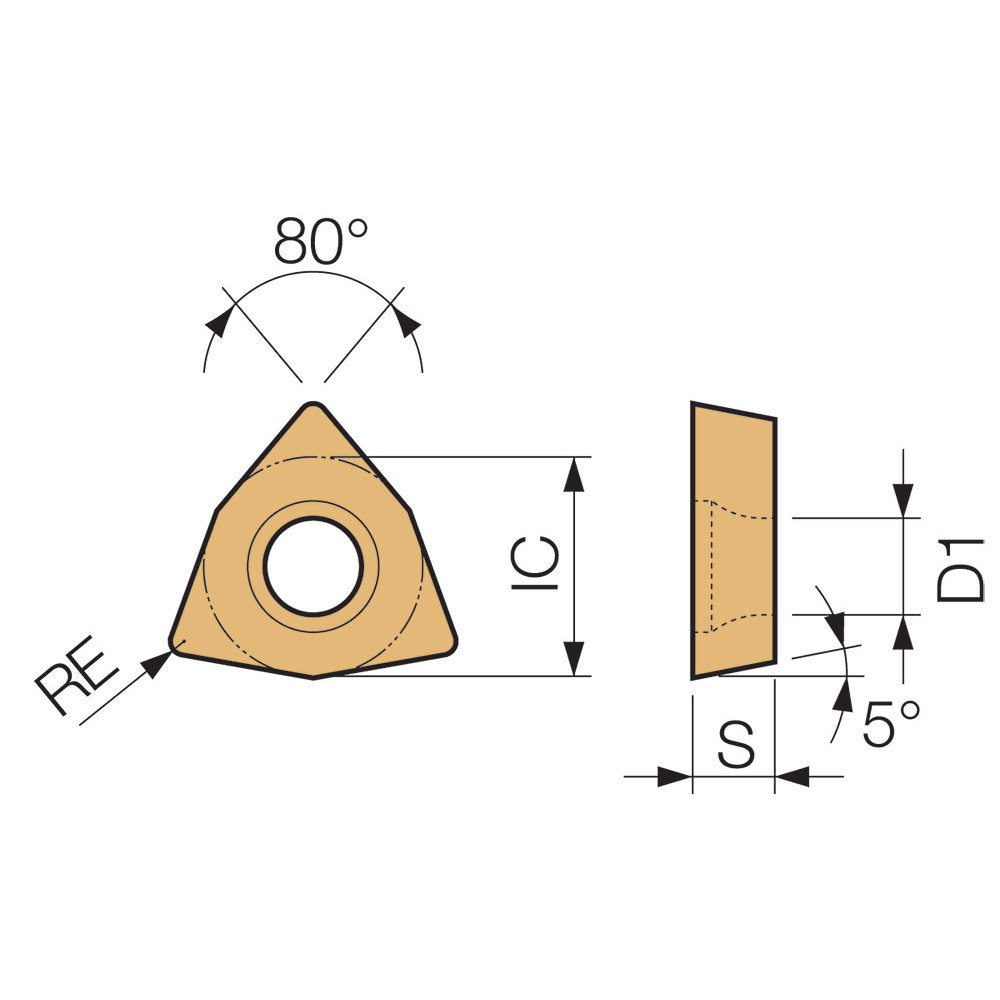

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.0906″ |
| Application | Boring | Internal Facing | Tool Type | Turning Insert |
| Insert Style | WBET | Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 0.004″ | Number of Cutting Edges | 3 |
| Insert Size | 12102 | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 1/16″ | Chip Breaker Type | F |
| Inscribed Circle Diameter (IC) | 5/32″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Trigon |
| Coating | MEGACOAT NANO PLUS | Series/List # | ISOI |
| Grade | PR1705 | Model No | 8865123 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.035
