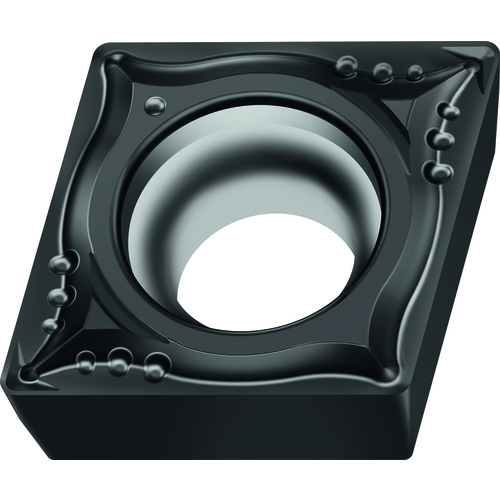

8190173 POSITIVE RHOMBIC
Turning Insert; 80 Rhombic ; 9.672 mm Length × 9.525 mm IC × 0.8 mm Corner Radius ; WSM01 ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 0.5 mm |
| Insert Style | CCMT | Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 0.8 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 09T308 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 9.672 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3.969 mm | Chip Breaker Type | MM4 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | 80° Rhombic |
| Coating | TiAlN | Series/List # | CCMT- mm4 |
| Grade | WSM01 | Cutting Depth Maximum (CDX) | 3 mm |
| Fixing Hole Diameter (D1) | 4.4 mm | Cutting Edge Effective Length (LE) | 9.672 mm |
| Tool Type | Turning Insert | Model No | CCMT09T308-MM4 WSM01 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.009
