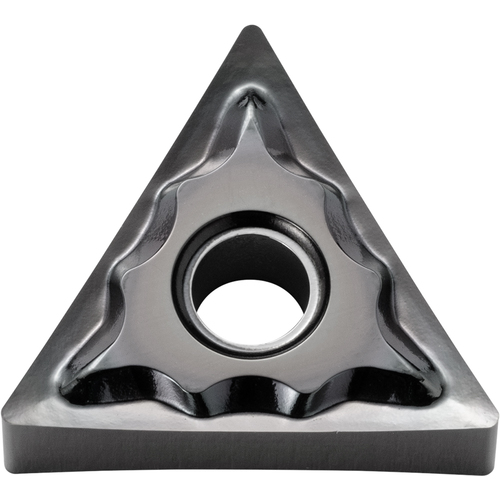

TNGG 331 AH KW10, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, WC/Co, 60 Degree Triangle, Turning Indexable Insert
Turning Insert; 60 Triangle × 3/8″ IC × 1/64″ Corner Radius ; KW10 ; Carbide ; Uncoated
| Applicable Material | | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 0.15″ |
| Application | Boring | Chamfering | Copying | External Turning | Facing | Up Facing | Tool Type | Turning Insert |
| Insert Style | TNGG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 6 |
| Insert Size | 331 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | AH |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | KW10 | Model No | 8830583 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.179
