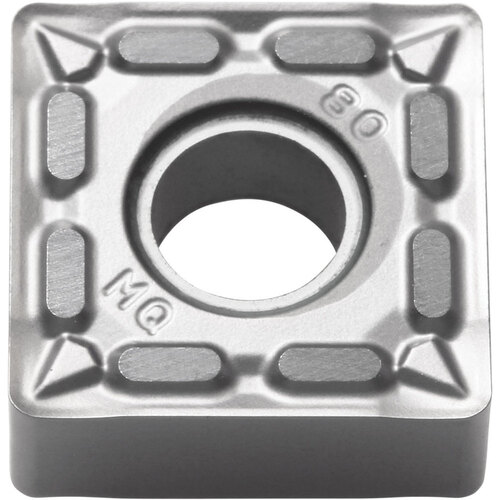

SNMG 431 MQ SW05, 1/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, WC/Co, 90 Degree Square, Turning Indexable Insert
Turning Insert; Square x 1/2″ IC × 1/64″ Corner Radius ; SW05 ; Carbide ; Uncoated
| Applicable Material | | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.2032″ |
| Application | Boring | Chamfering | External Turning | Facing | Tool Type | Turning Insert |
| Insert Style | SNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 8 |
| Insert Size | 431 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | MQ |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | SW05 | Model No | 8834208 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.243
