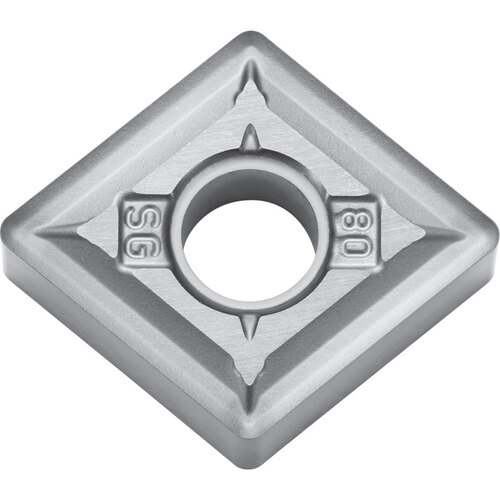

CNMG 643 SG SW05, 3/64″ Corner Radius, 1/4″ Thick, 3/4″ Inscribed Circle, WC/Co, 80 Degree Diamond, Turning Indexable Insert
Turning Insert; 80 Diamond × 3/4″ IC × 3/64″ Corner Radius ; SW05 ; Carbide ; Uncoated
| Applicable Material | | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 5/16″ |
| Application | Boring | External Turning | Facing | Internal Facing | Tool Type | Turning Insert |
| Insert Style | CNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 3/64″ | Number of Cutting Edges | 4 |
| Insert Size | 643 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ | Chip Breaker Type | SG |
| Inscribed Circle Diameter (IC) | 3/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Diamond |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | SW05 | Model No | 8861421 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.716
