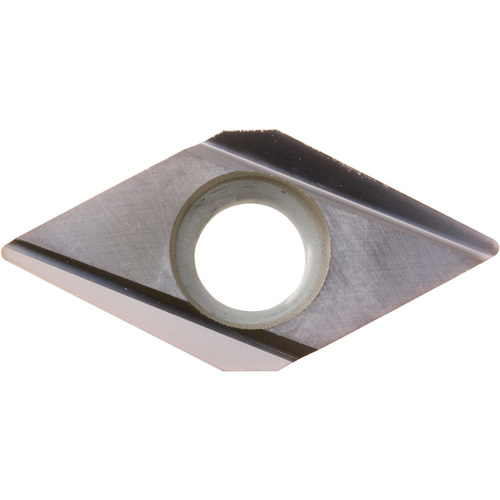

DCGT 32505 F KW10, 0.008″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, WC/Co, 55 Degree Diamond, Turning Indexable Insert
Turning Insert; 55 Diamond × 3/8″ IC × 0.008″ Corner Radius ; KW10 ; Carbide ; Uncoated
| Applicable Material | | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 0.1732″ |
| Application | Back Boring | Copying | External Turning | Sub-Spindle | Tool Type | Turning Insert |
| Insert Style | DCGT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.008″ | Number of Cutting Edges | 2 |
| Insert Size | 32505 | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 5/32″ | Chip Breaker Type | F |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 55 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 55° Diamond |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | KW10 | Model No | 8817714 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.131
