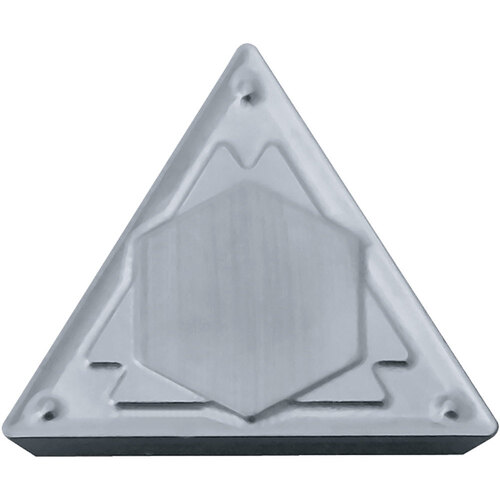

TPMR 321 HQ TN610, 1/64″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, TiCN, 60 Degree Triangle, Turning Indexable Insert
Turning Insert; 60 Triangle × 3/8″ IC × 1/64″ Corner Radius ; TN610 ; Cermet ; TiCN
| Applicable Material | | Super-Alloys / Titanium | | Tool Type | Turning Insert |

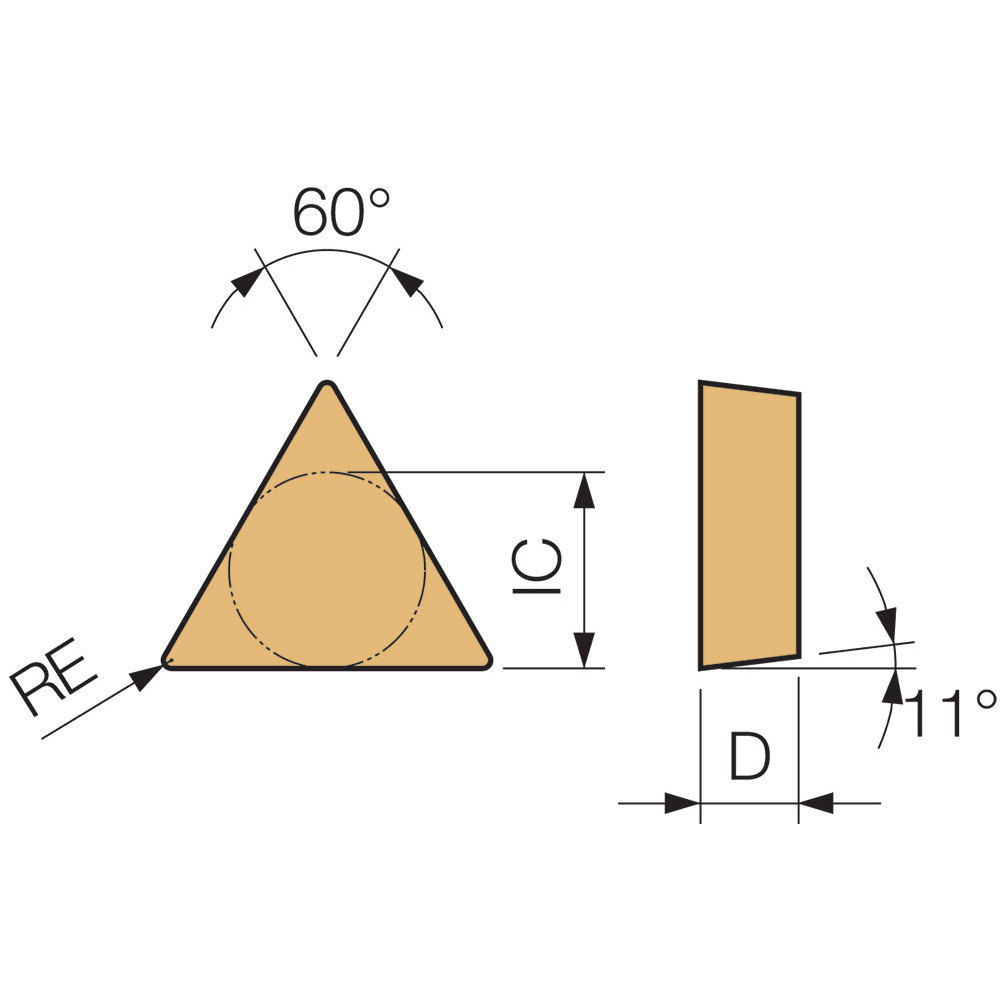

| Application | Back Boring | Boring | Copying | External Turning | Internal Facing | Clearance Angle Major (AN) | 11 Degrees |
| Insert Style | TPMR | Number of Cutting Edges | 3 |
| Corner Radius (RE) | 1/64″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 321 | Chip Breaker Type | HQ |
| Insert Thickness (S) | 1/8″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Cermet | Series/List # | ISOI |
| Coating | TiCN | Model No | 8848075 |
| Grade | TN610 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.076
