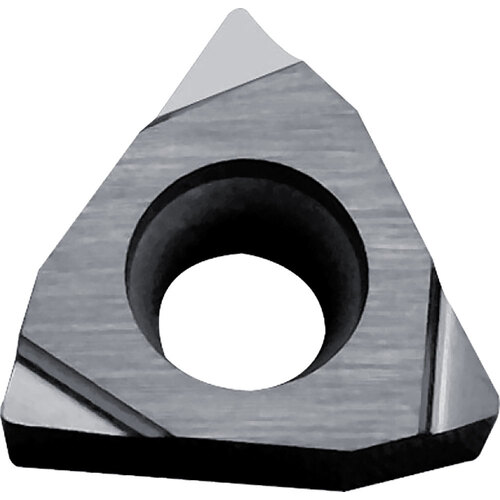

WBET 1211 F TN610, 1/64″ Corner Radius, 1/16″ Thick, 5/32″ Inscribed Circle, TiCN, 80 Degree Trigon, Turning Indexable Insert
Turning Insert; 80 Trigon × 5/32″ IC × 1/64″ Corner Radius ; TN610 ; Cermet ; TiCN
| Applicable Material | | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.0906″ |
| Application | Boring | Internal Facing | Tool Type | Turning Insert |
| Insert Style | WBET | Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 3 |
| Insert Size | 1211 | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 1/16″ | Chip Breaker Type | F |
| Inscribed Circle Diameter (IC) | 5/32″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Cermet | Shape | 80° Trigon |
| Coating | TiCN | Series/List # | ISOI |
| Grade | TN610 | Model No | 8848118 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.035
