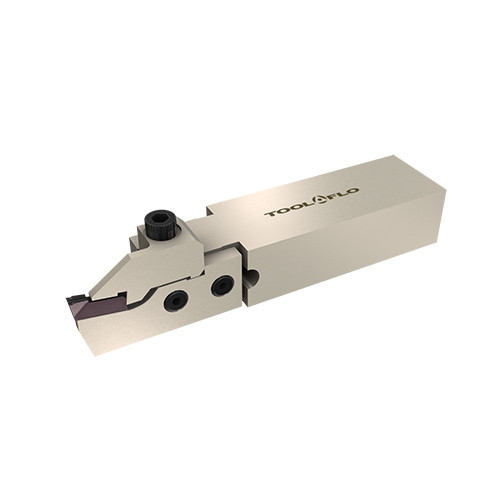

FCVOR/L-1200B
Parting Off Holder; 4-1/2″ OAL × 1.2 mm CW Min. × 1.2 mm CW Max. ; Steel
| Shank Height (H) | 3/4″ | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 1″ | Shank Standard | Square |
| Body Width (WB) | 0.9 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 1.2 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 1.2 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 1-5/8″ |
| Overall Length (OAL) | 4-1/2″ | Cutting Direction (HAND) | Neutral |
| Head Length (LH) | 1.38″ | Measurement Type | Inch |
| Cutting Position | External | Functional Width (WF) | 1″ |
Product Features
| Family Description | External Neutral Cut Off Holder for FC Inserts | Country of Origin | USA |
Shipping Info
Package Weight
0.72
