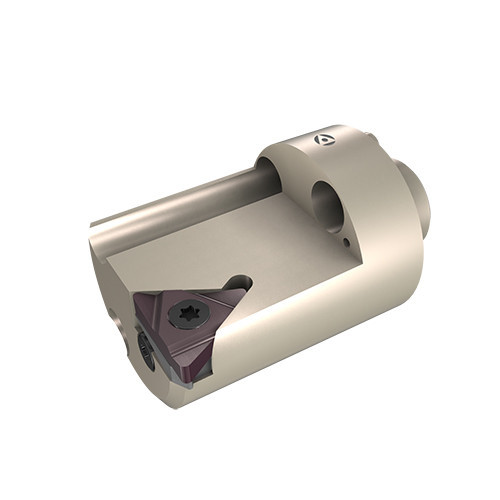

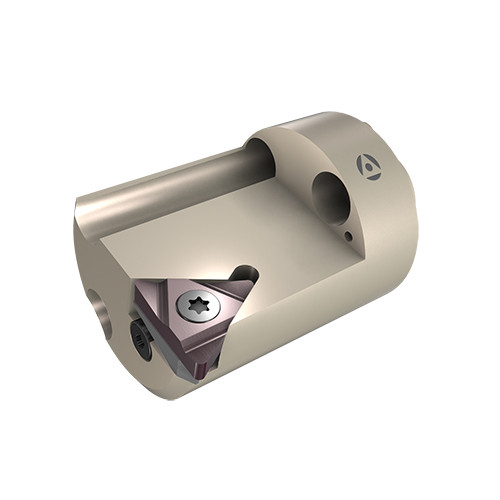

H24-AVR-3R
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Insert to Shank Reference | 0.89″ |
| Minimum Bore Diameter (DMIN) | 1.76″ | Body Material | Steel |
| Head Length (LH) | 1-5/8″ | Size | H24-AVR-3R |
| Overall Length (OAL) | 1-5/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Reduced Body Diameter Length (LDRED) | 1.63″ |
| Application | | Int Threading Laydown | | Neck Diameter (DN) | 0″ |
| Functional Width (WF) | 0.89″ |
Product Features
| Family Description | Interchangeable Right Hand Heads with Non-Serrated Connection for IR Laydown Inserts | Country of Origin | USA |
