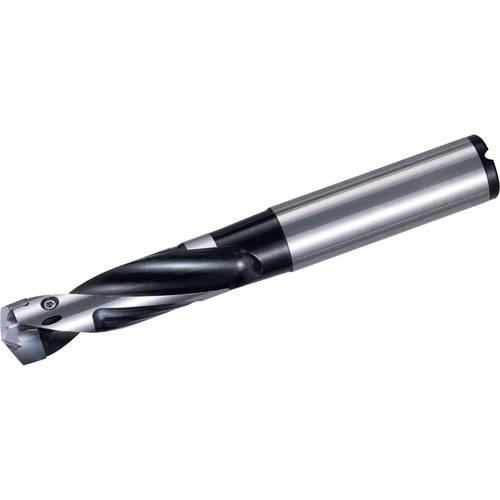

SS0375DRA085M3, DRA Magic Drill 0.3346-0.3539″ Cutting Diameter, 3xD, Replaceable Tip Drill
Drill; 0.3347″ to 0.3539″ Dia. × 0.3347″ Min. Dia. × 0.3539″ Max. Dia. × 0.3752″ Shank Dia. × 3.189″ OAL × 1.063″ LU × 1.5752″ Shank Length ; 3D ; Round Shank ; Series DRA

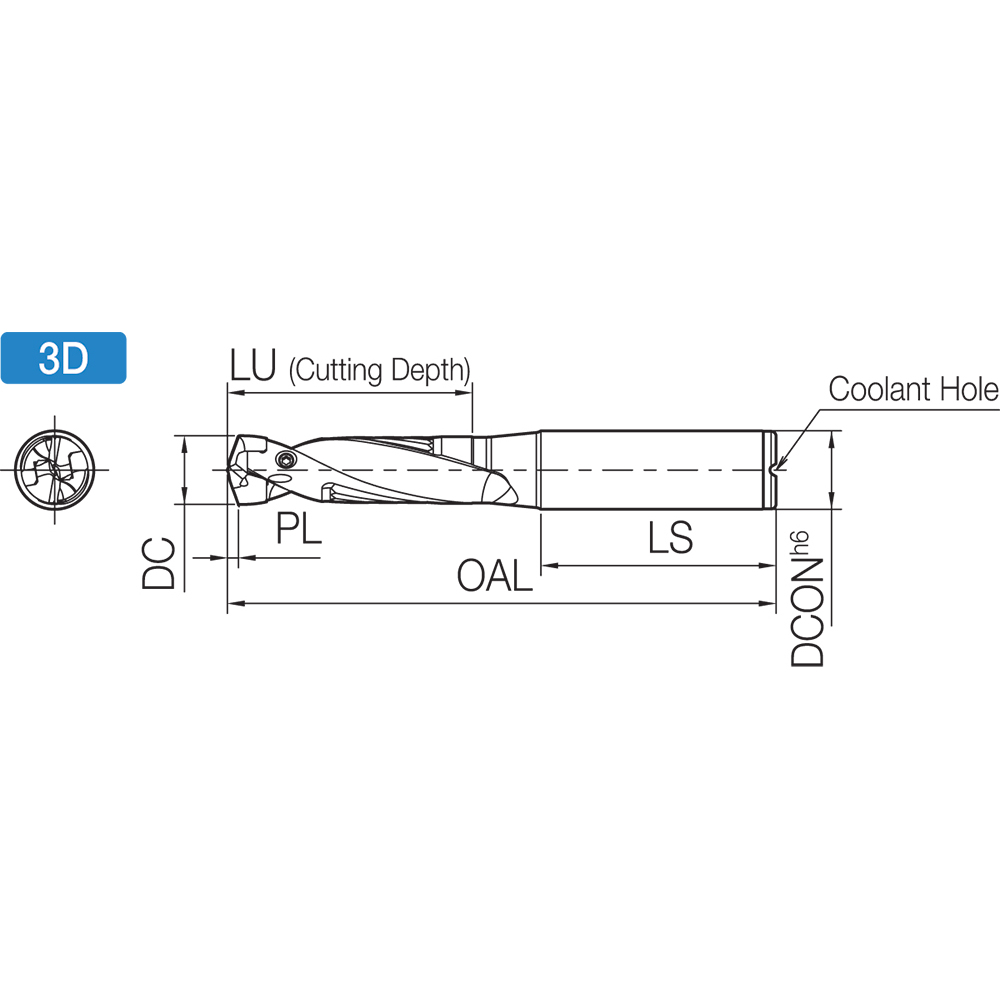

| Cutting Diameter (DC) | 0.3347″ to 0.3539″ | Overall Length (OAL) | 3.189″ |
| Usable Length (LU) | 1.063″ | Shank Length (LS) | 1.5752″ |
| Length Group | 3D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.3752″ | Style | SS DRA |
| Insert Seat Size Code (SSC) | 85 | Master Insert Identification (MIID) | DA0850M- ~ DA0890M- |
| Cutting Diameter Minimum (DCN) | 0.3347″ | Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 0.3539″ | Body Material | Steel |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.189
