SS0625DRA140M5, DRA Magic Drill 0.5512-0.5705″ Cutting Diameter, 5xD, Replaceable Tip Drill

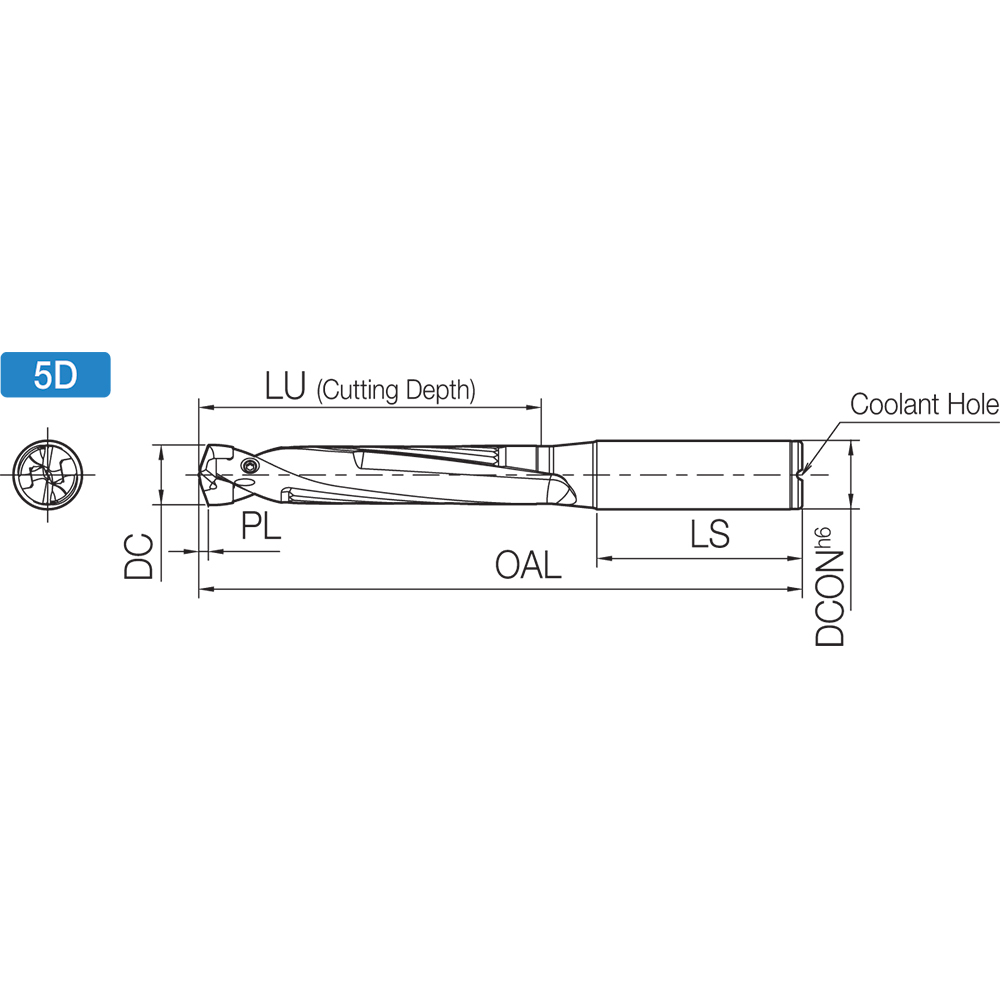

Drill; 0.5512″ to 0.5705″ Dia. × 0.5512″ Min. Dia. × 0.5705″ Max. Dia. × 0.6252″ Shank Dia. × 5.5512″ OAL × 2.8539″ LU × 1.8902″ Shank Length ; 5D ; Round Shank ; Series DRA
| Cutting Diameter (DC) | 0.5512″ to 0.5705″ | Overall Length (OAL) | 5.5512″ |
| Usable Length (LU) | 2.8539″ | Shank Length (LS) | 1.8902″ |
| Length Group | 5D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.6252″ | Style | SS DRA |
| Insert Seat Size Code (SSC) | 140 | Master Insert Identification (MIID) | DA1400M- ~ DA1440M- |
| Cutting Diameter Minimum (DCN) | 0.5512″ | Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 0.5705″ | Body Material | Steel |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.379
