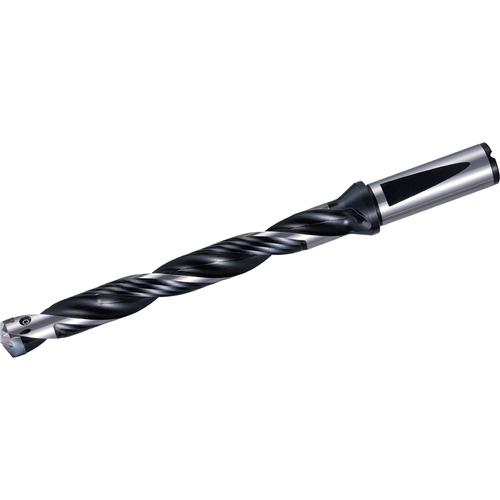

SF0625DRA145M8, DRA Magic Drill 0.5709-0.5902″ Cutting Diameter, 8xD, Replaceable Tip Drill
Drill; 0.5709″ to 0.5902″ Dia. × 0.5709″ Min. Dia. × 0.5902″ Max. Dia. × 0.6252″ Shank Dia. × 7.441″ OAL × 4.724″ LU × 1.8902″ Shank Length ; 8D ; Flanged Shank ; Series DRA

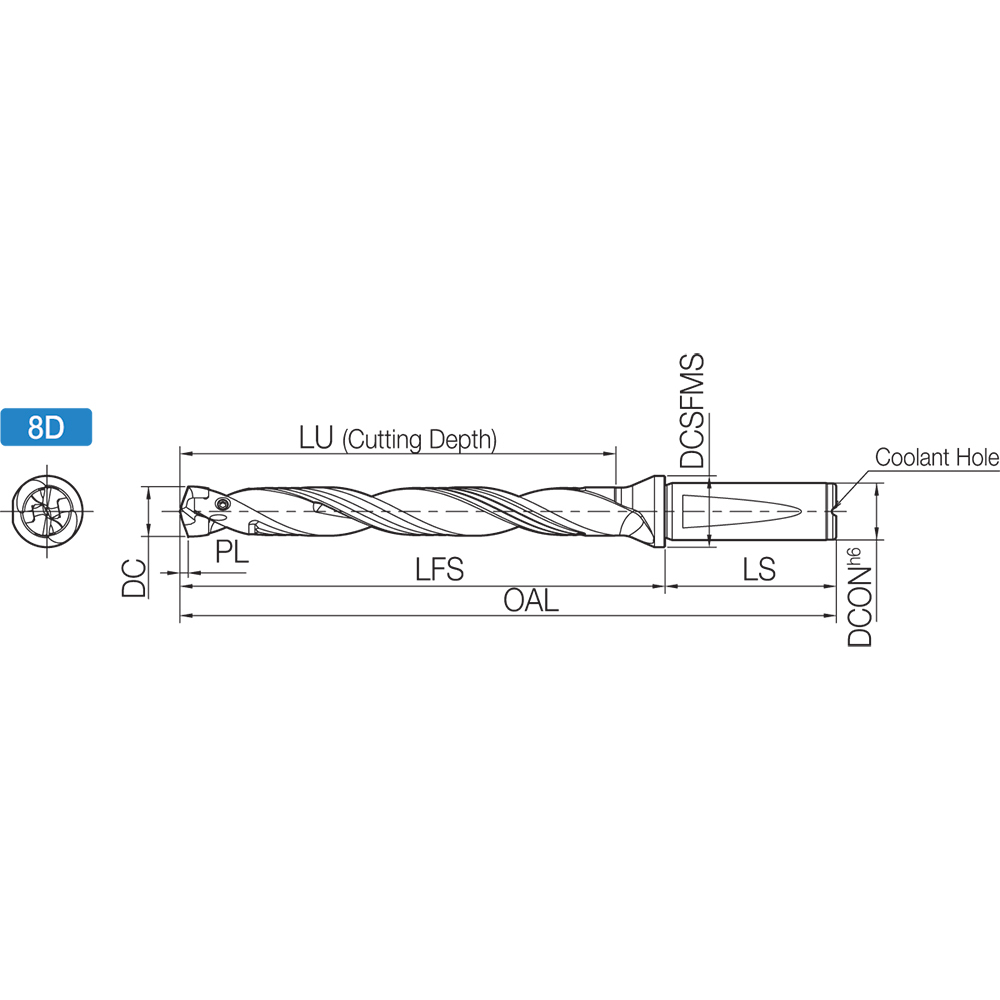

| Cutting Diameter (DC) | 0.5709″ to 0.5902″ | Overall Length (OAL) | 7.441″ |
| Usable Length (LU) | 4.724″ | Shank Length (LS) | 1.8902″ |
| Length Group | 8D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Flanged | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.6252″ | Style | SF DRA |
| Insert Seat Size Code (SSC) | 145 | Master Insert Identification (MIID) | DA1450M- ~ DA1490M- |
| Cutting Diameter Minimum (DCN) | 0.5709″ | Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 0.5902″ | Body Material | Steel |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.455
