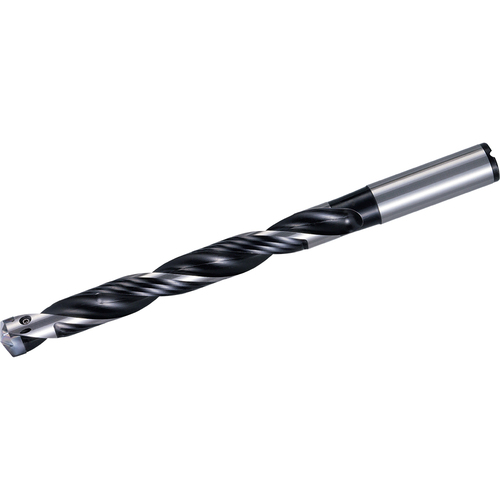

SS0500DRA110M8, DRA Magic Drill 0.4331-0.4524″ Cutting Diameter, 8xD, Replaceable Tip Drill
Drill; 0.4331″ to 0.4524″ Dia. × 0.4331″ Min. Dia. × 0.4524″ Max. Dia. × 1/2″ Shank Dia. × 6.063″ OAL × 3.6221″ LU × 1.7721″ Shank Length ; 8D ; Round Shank ; Series DRA

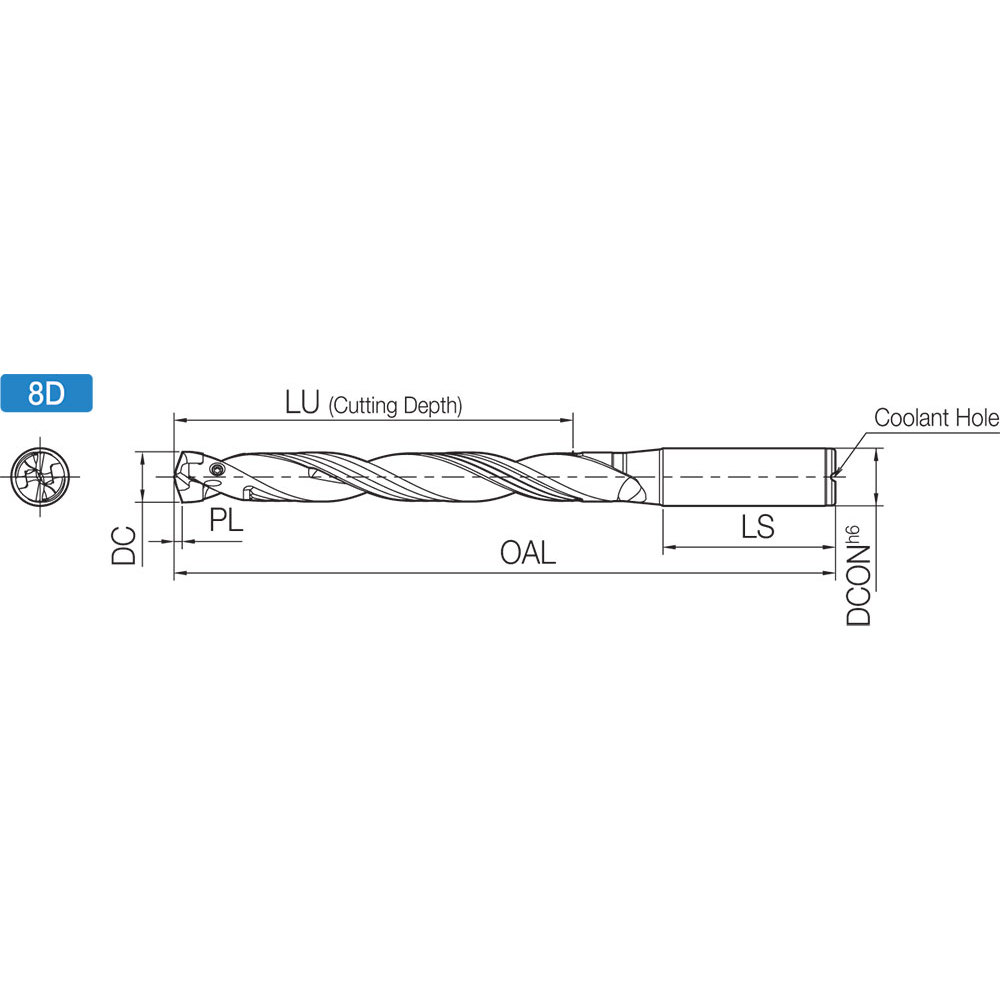

| Cutting Diameter (DC) | 0.4331″ to 0.4524″ | Overall Length (OAL) | 6.063″ |
| Usable Length (LU) | 3.6221″ | Shank Length (LS) | 1.7721″ |
| Length Group | 8D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Style | SS DRA |
| Insert Seat Size Code (SSC) | 110 | Master Insert Identification (MIID) | DA1100M- ~ DA1140M- |
| Cutting Diameter Minimum (DCN) | 0.4331″ | Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 0.4524″ | Body Material | Steel |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.214
