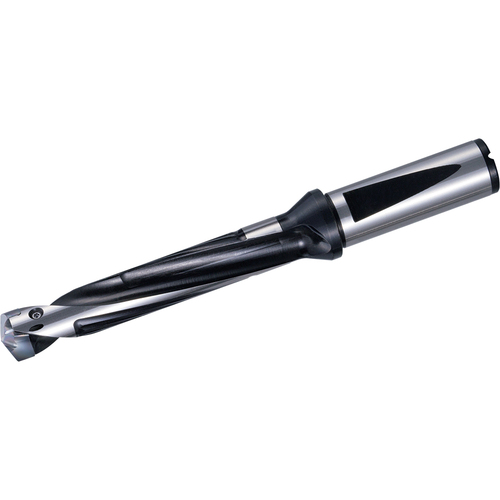

SF1000DRA240M5, DRA Magic Drill 0.9449-0.9839″ Cutting Diameter, 5xD, Replaceable Tip Drill
Drill; 0.9449″ to 0.9839″ Dia. × 0.9449″ Min. Dia. × 0.9839″ Max. Dia. × 1″ Shank Dia. × 8.5039″ OAL × 4.9209″ LU × 2.2051″ Shank Length ; 5D ; Flanged Shank ; Series DRA

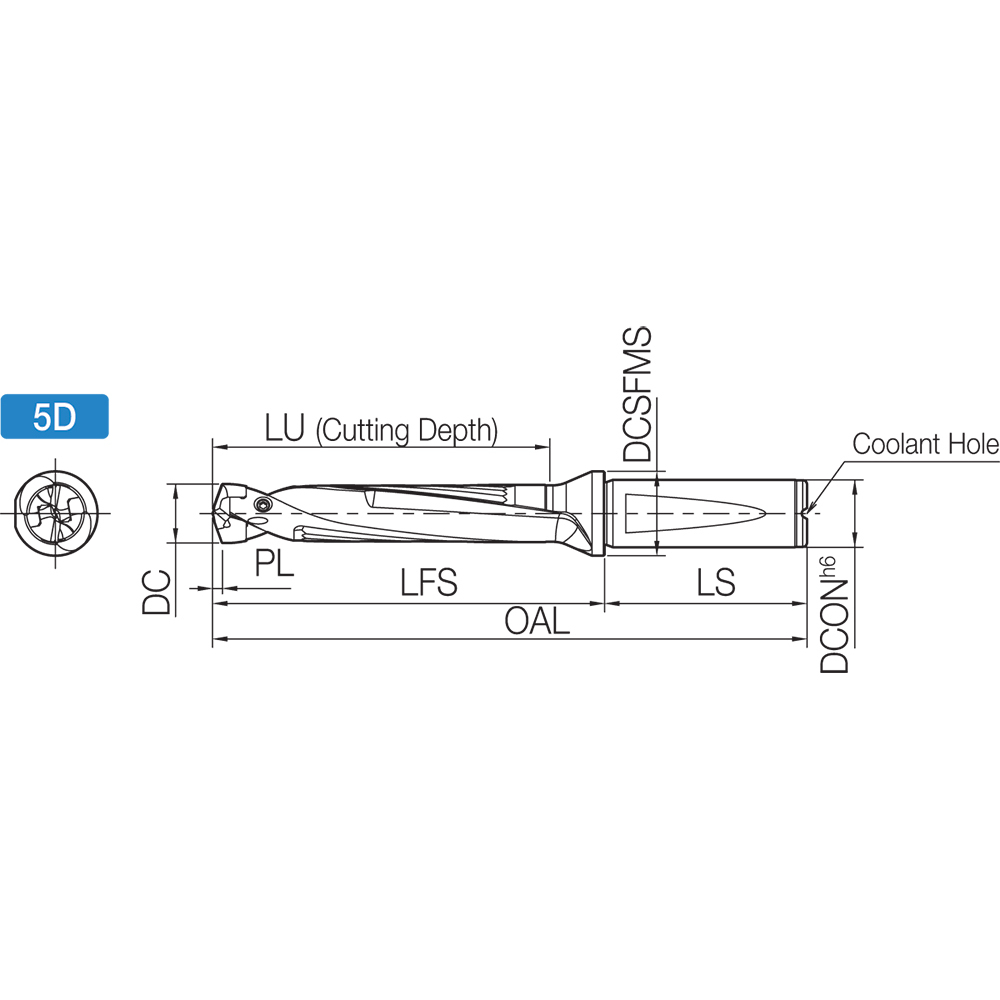

| Cutting Diameter (DC) | 0.9449″ to 0.9839″ | Overall Length (OAL) | 8.5039″ |
| Usable Length (LU) | 4.9209″ | Shank Length (LS) | 2.2051″ |
| Length Group | 5D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Flanged | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Style | SF DRA |
| Insert Seat Size Code (SSC) | 240 | Master Insert Identification (MIID) | DA2400M- ~ DA2450M- |
| Cutting Diameter Minimum (DCN) | 0.9449″ | Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 0.9839″ | Body Material | Steel |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
1.218
