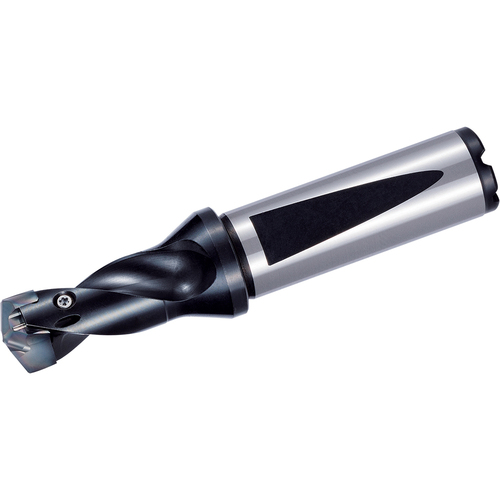

SF0625DRA145M15, DRA Magic Drill 0.5709-0.5902″ Cutting Diameter, 1.5xD, Replaceable Tip Drill

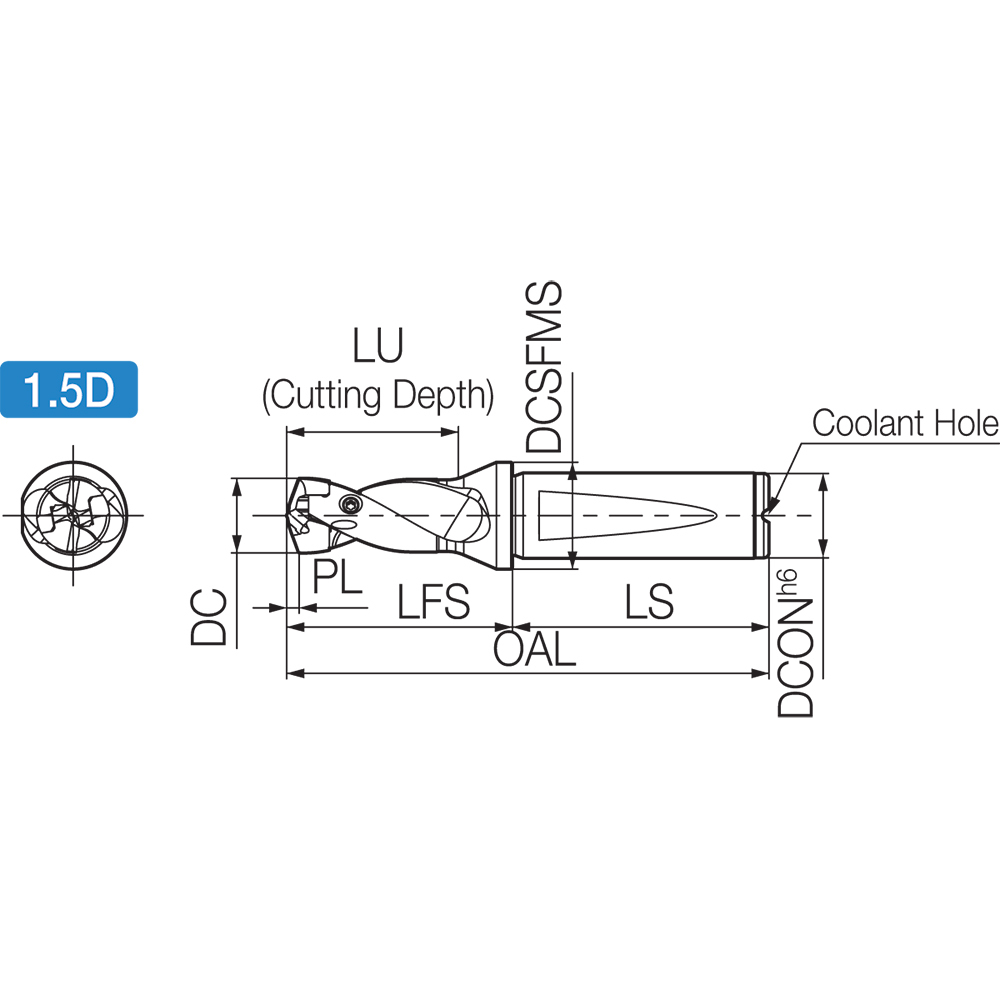

Drill; 0.5709″ to 0.5902″ Dia. × 0.5709″ Min. Dia. × 0.5902″ Max. Dia. × 0.6252″ Shank Dia. × 3.602″ OAL × 0.8858″ LU × 1.8902″ Shank Length ; 1.5D ; Flanged Shank ; Series DRA
| Cutting Diameter (DC) | 0.5709″ to 0.5902″ | Overall Length (OAL) | 3.602″ |
| Usable Length (LU) | 0.8858″ | Shank Length (LS) | 1.8902″ |
| Length Group | 1.5D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Flanged | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.6252″ | Style | SF DRA |
| Insert Seat Size Code (SSC) | 145 | Master Insert Identification (MIID) | DA1450M- ~ DA1490M- |
| Cutting Diameter Minimum (DCN) | 0.5709″ | Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 0.5902″ | Body Material | Steel |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.294
