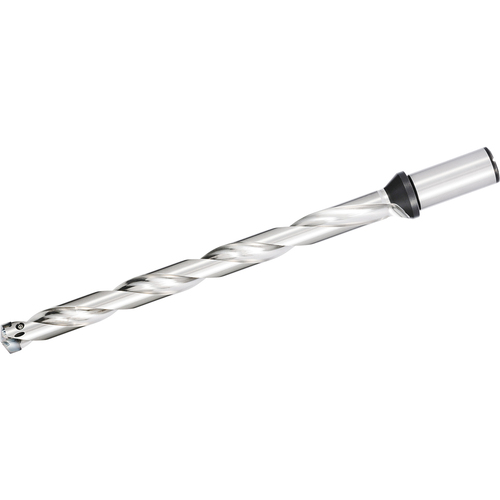

SF25DRA240M12, DRA Magic Drill 24.00-24.99mm Cutting Diameter, 12xD, Replaceable Tip Drill

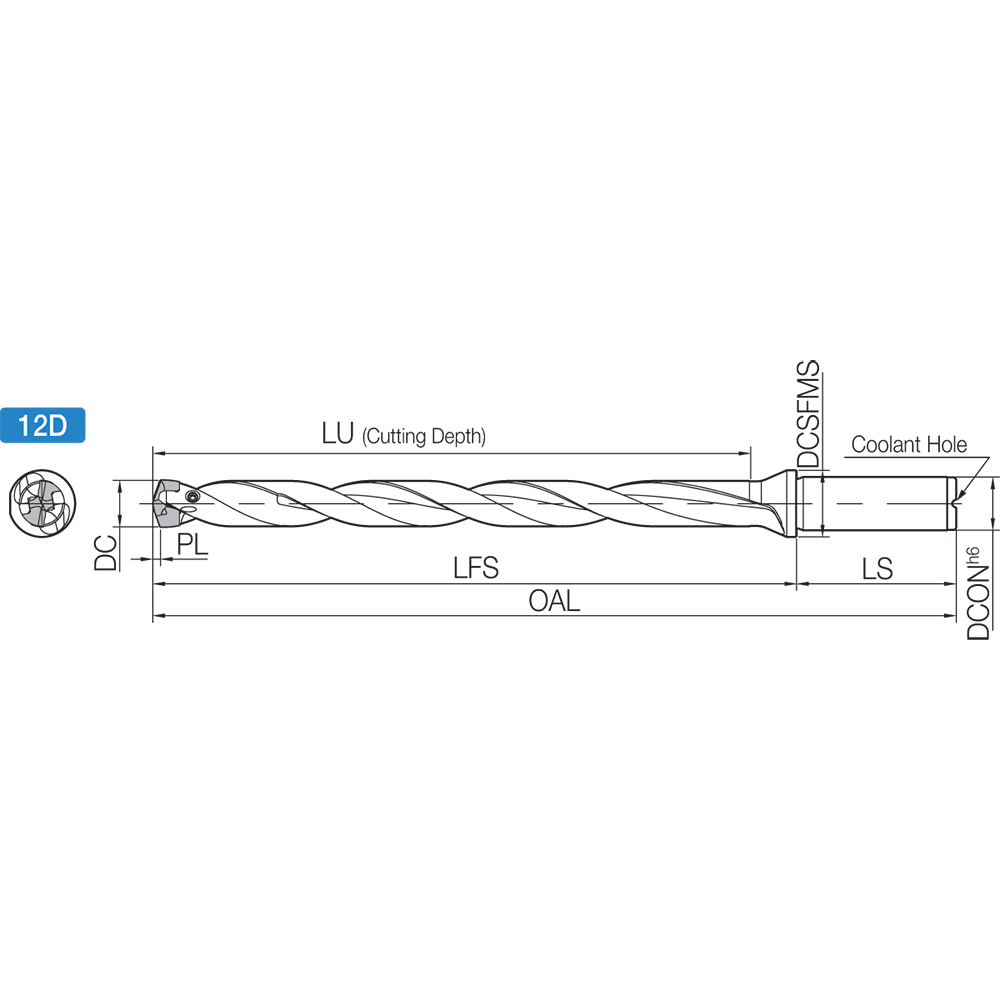

Drill; 24 mm to 24.99 mm Dia. × 24 mm Min. Dia. × 24.99 mm Max. Dia. × 25 mm Shank Dia. × 391 mm OAL × 300 mm LU × 56 mm Shank Length ; 12D ; Flanged Shank ; Series DRA
| Cutting Diameter (DC) | 24 mm to 24.99 mm | Overall Length (OAL) | 391 mm |
| Usable Length (LU) | 300 mm | Shank Length (LS) | 56 mm |
| Length Group | 12D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Flanged | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Style | SF DRA |
| Insert Seat Size Code (SSC) | 240 | Master Insert Identification (MIID) | DA2400M- ~ DA2450M- |
| Cutting Diameter Minimum (DCN) | 24 mm | Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 24.99 mm | Body Material | Steel |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
2.243
