SF25DRA250M15, DRA Magic Drill 25.00-25.50mm Cutting Diameter, 1.5xD, Replaceable Tip Drill

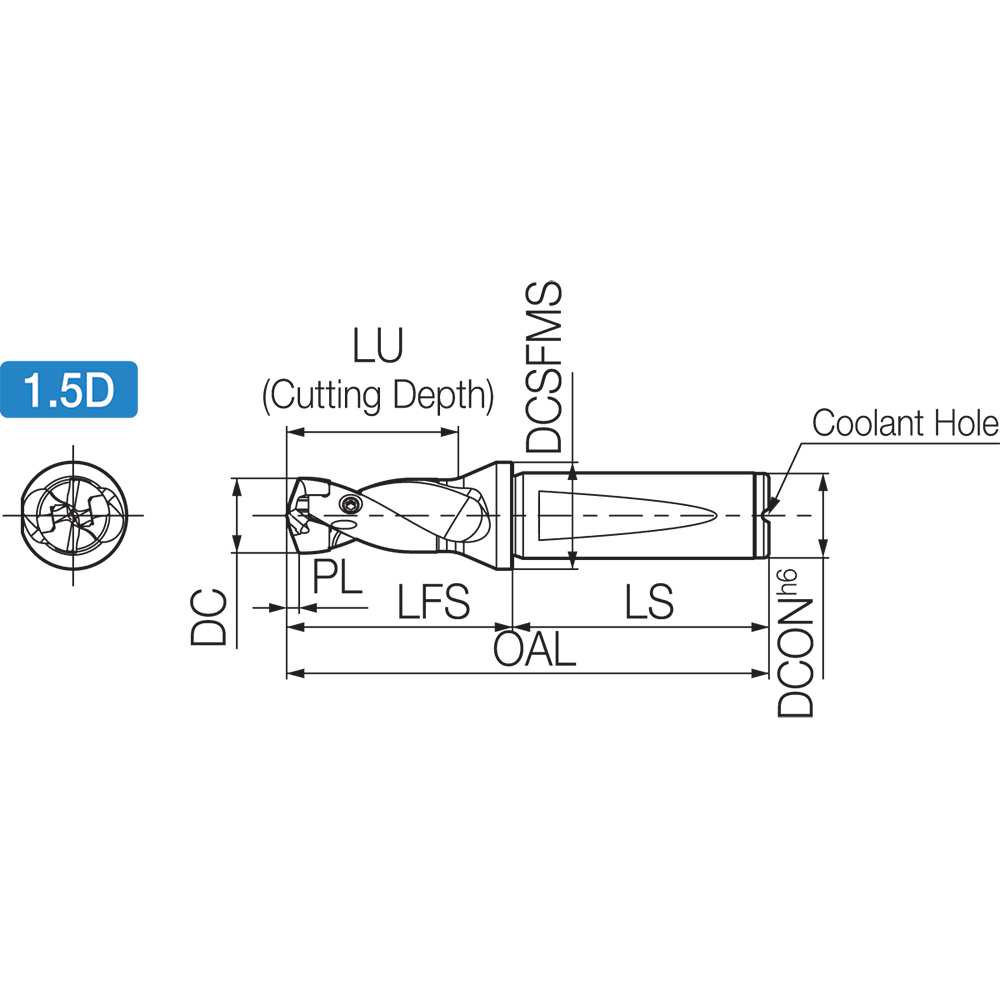

Drill; 25 mm to 25.5 mm Dia. × 25 mm Min. Dia. × 25.5 mm Max. Dia. × 25 mm Shank Dia. × 131 mm OAL × 39 mm LU × 56 mm Shank Length ; 1.5D ; Flanged Shank ; Series DRA
| Cutting Diameter (DC) | 25 mm to 25.5 mm | Overall Length (OAL) | 131 mm |
| Usable Length (LU) | 39 mm | Shank Length (LS) | 56 mm |
| Length Group | 1.5D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Flanged | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Style | SF DRA |
| Insert Seat Size Code (SSC) | 250 | Master Insert Identification (MIID) | DA2500M- ~ DA2550M- |
| Cutting Diameter Minimum (DCN) | 25 mm | Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 25.5 mm | Body Material | Steel |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
1.005
