SS16DRA145M15, DRA Magic Drill 14.50-14.99mm Cutting Diameter, 1.5xD, Replaceable Tip Drill

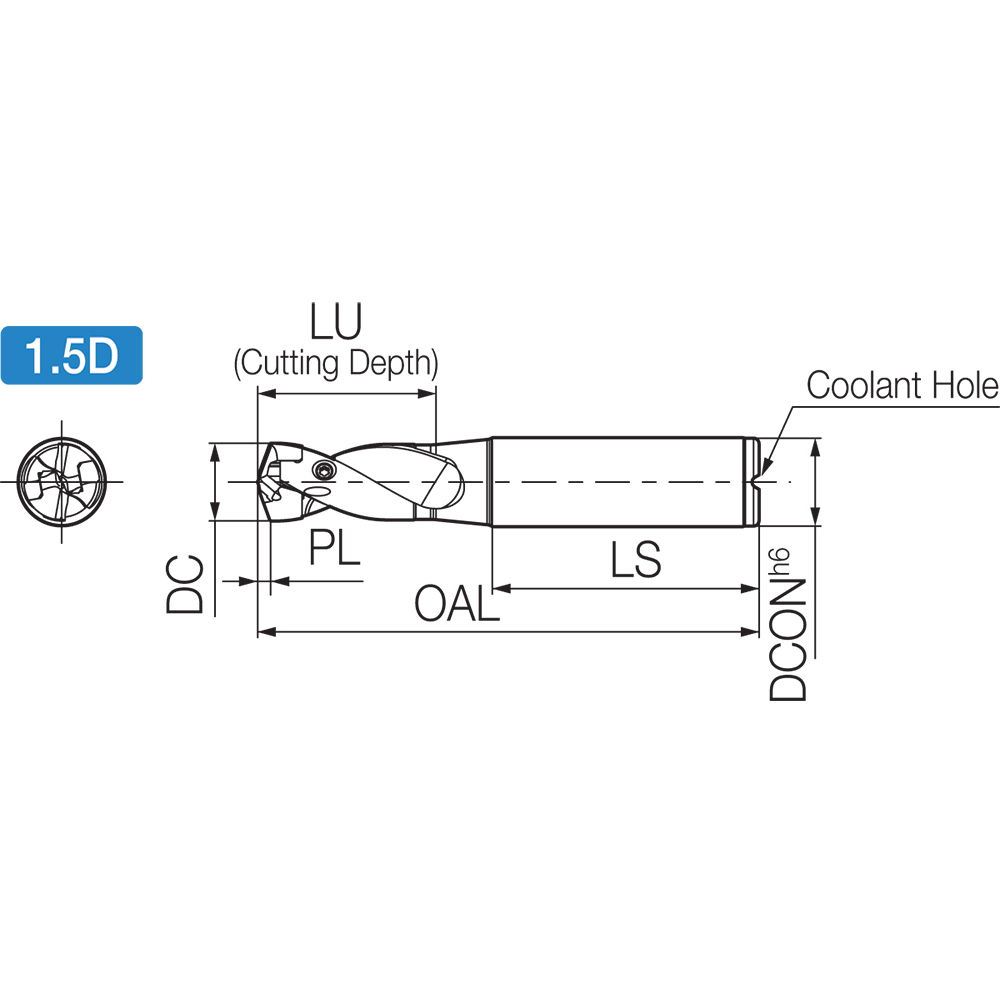

Drill; 14.5 mm to 14.99 mm Dia. × 14.5 mm Min. Dia. × 14.99 mm Max. Dia. × 16 mm Shank Dia. × 91.5 mm OAL × 22.5 mm LU × 48 mm Shank Length ; 1.5D ; Round Shank ; Series DRA
| Cutting Diameter (DC) | 14.5 mm to 14.99 mm | Overall Length (OAL) | 91.5 mm |
| Usable Length (LU) | 22.5 mm | Shank Length (LS) | 48 mm |
| Length Group | 1.5D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Style | SS DRA |
| Insert Seat Size Code (SSC) | 145 | Master Insert Identification (MIID) | DA1450M- ~ DA1490M- |
| Cutting Diameter Minimum (DCN) | 14.5 mm | Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 14.99 mm | Body Material | Steel |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.393
