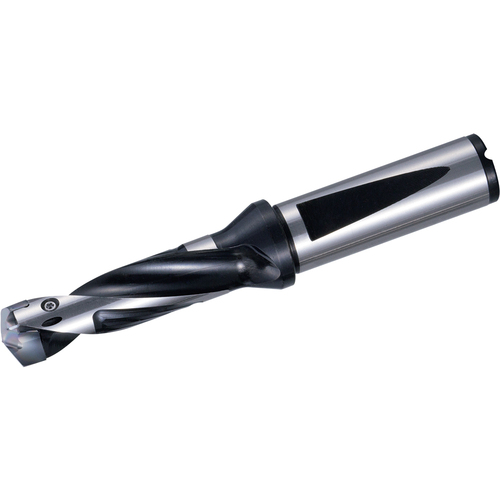

SF16DRA105M3, DRA Magic Drill 10.50-10.99mm Cutting Diameter, 3xD, Replaceable Tip Drill

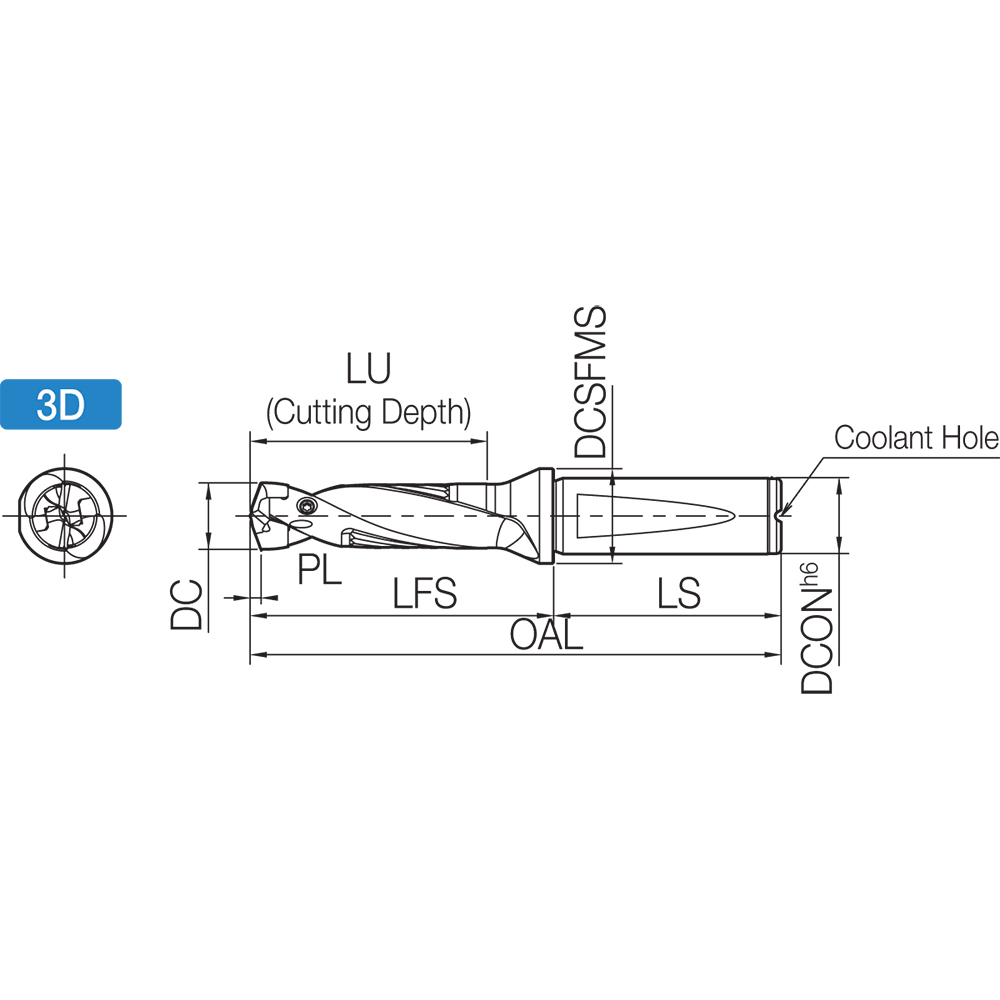

Drill; 10.5 mm to 10.99 mm Dia. × 10.5 mm Min. Dia. × 10.99 mm Max. Dia. × 16 mm Shank Dia. × 97 mm OAL × 33 mm LU × 48 mm Shank Length ; 3D ; Flanged Shank ; Series DRA
| Cutting Diameter (DC) | 10.5 mm to 10.99 mm | Overall Length (OAL) | 97 mm |
| Usable Length (LU) | 33 mm | Shank Length (LS) | 48 mm |
| Length Group | 3D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Flanged | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Style | SF DRA |
| Insert Seat Size Code (SSC) | 105 | Master Insert Identification (MIID) | DA1050M- ~ DA1090M- |
| Cutting Diameter Minimum (DCN) | 10.5 mm | Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 10.99 mm | Body Material | Steel |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.295
