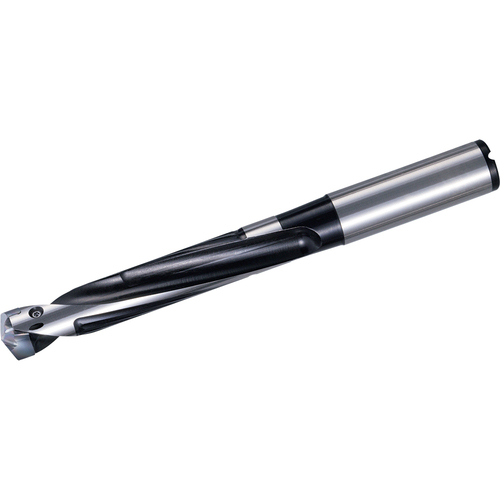

SS18DRA170M5, DRA Magic Drill 17.00-17.99mm Cutting Diameter, 5xD, Replaceable Tip Drill

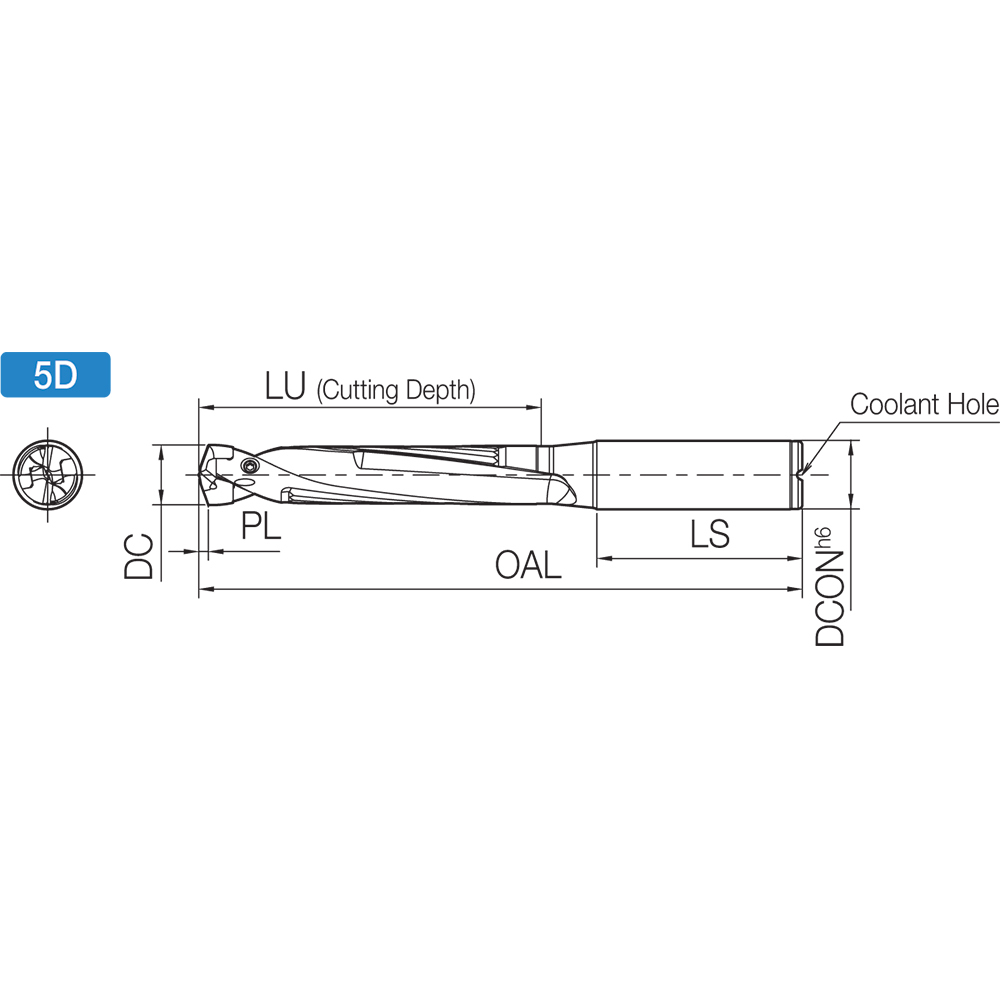

Drill; 17 mm to 17.99 mm Dia. × 17 mm Min. Dia. × 17.99 mm Max. Dia. × 18 mm Shank Dia. × 164 mm OAL × 90 mm LU × 48 mm Shank Length ; 5D ; Round Shank ; Series DRA
| Cutting Diameter (DC) | 17 mm to 17.99 mm | Overall Length (OAL) | 164 mm |
| Usable Length (LU) | 90 mm | Shank Length (LS) | 48 mm |
| Length Group | 5D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Style | SS DRA |
| Insert Seat Size Code (SSC) | 170 | Master Insert Identification (MIID) | DA1700M- ~ DA1790M- |
| Cutting Diameter Minimum (DCN) | 17 mm | Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 17.99 mm | Body Material | Steel |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.613
