SS16DRA150M8, DRA Magic Drill 15.00-15.99mm Cutting Diameter, 8xD, Replaceable Tip Drill

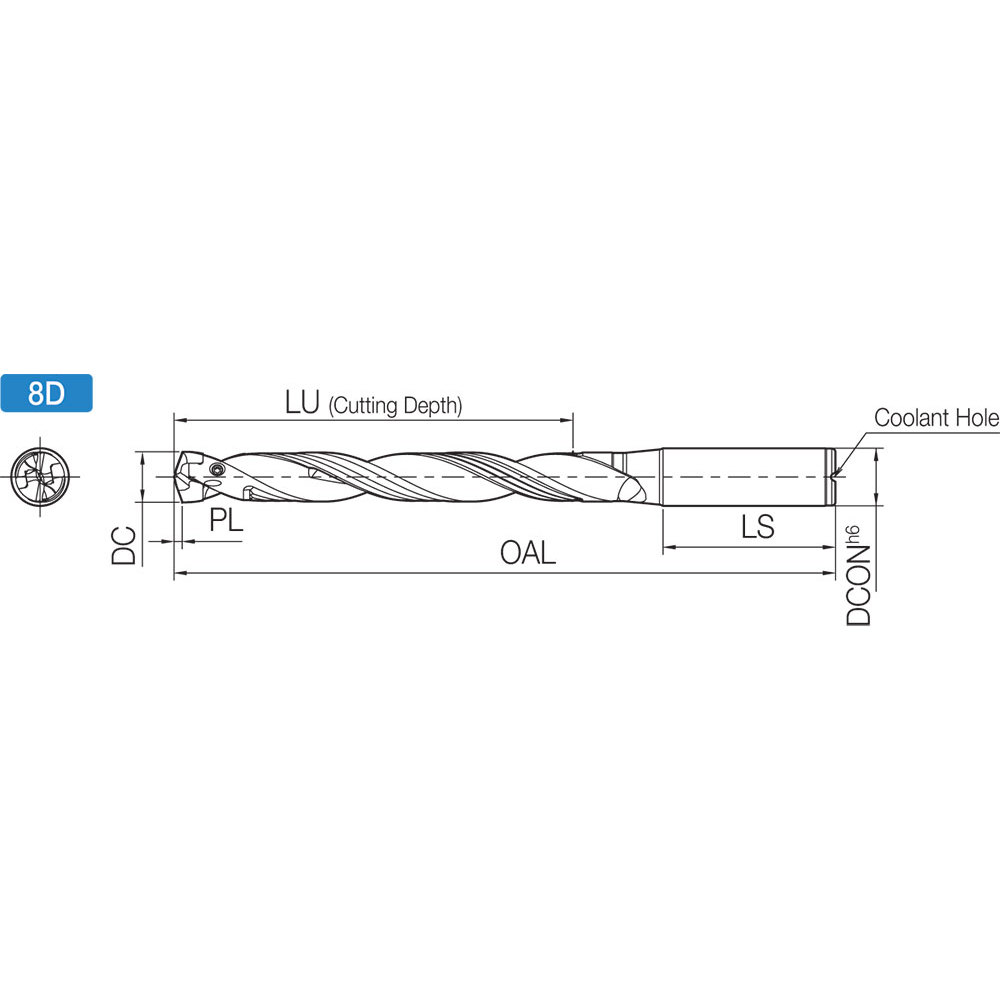

Drill; 15 mm to 15.99 mm Dia. × 15 mm Min. Dia. × 15.99 mm Max. Dia. × 16 mm Shank Dia. × 199 mm OAL × 128 mm LU × 48 mm Shank Length ; 8D ; Round Shank ; Series DRA
| Cutting Diameter (DC) | 15 mm to 15.99 mm | Overall Length (OAL) | 199 mm |
| Usable Length (LU) | 128 mm | Shank Length (LS) | 48 mm |
| Length Group | 8D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Style | SS DRA |
| Insert Seat Size Code (SSC) | 150 | Master Insert Identification (MIID) | DA1500M- ~ DA1590M- |
| Cutting Diameter Minimum (DCN) | 15 mm | Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 15.99 mm | Body Material | Steel |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.552
