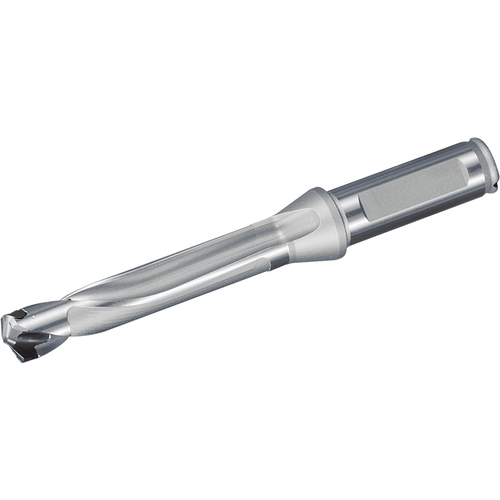

SF20DRC150M3, DRC Magic Drill 15.00-15.99mm Cutting Diameter, 3xD, Replaceable Tip Drill

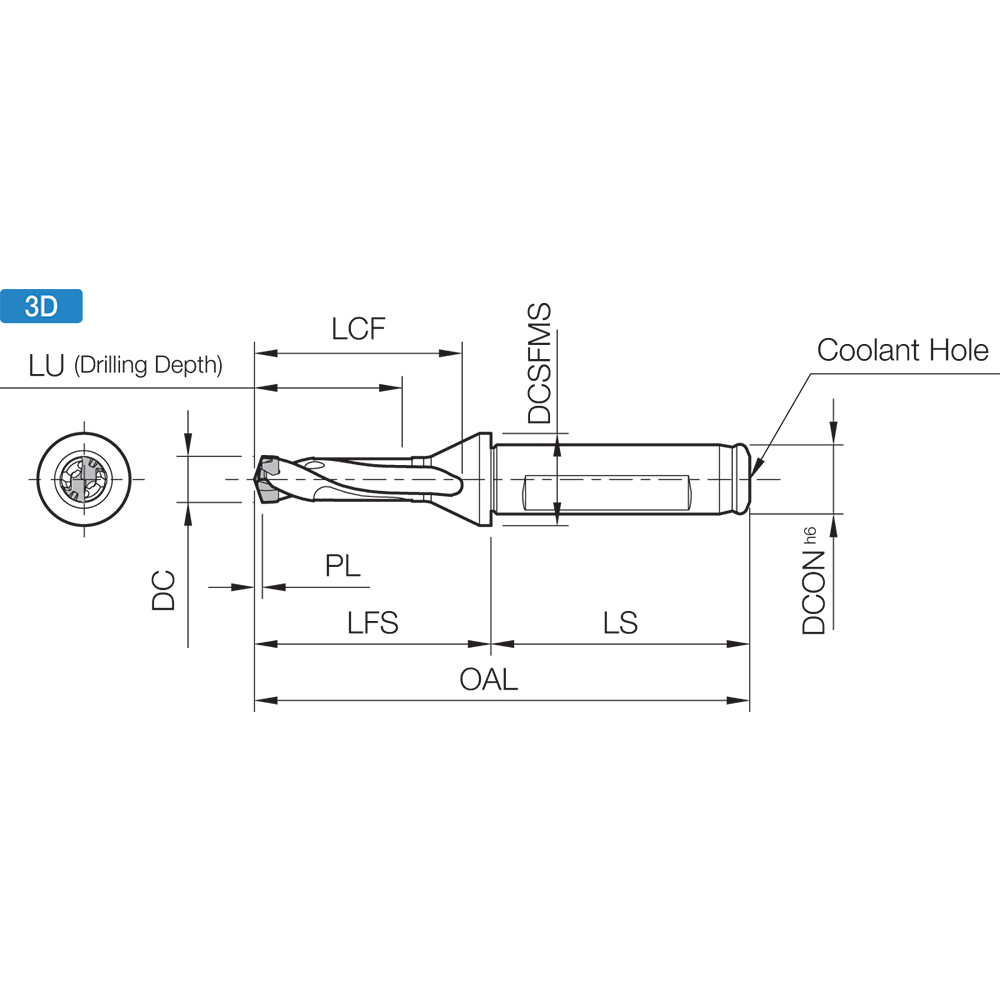

Drill; 15 mm to 15.99 mm Dia. × 15 mm Min. Dia. × 15.99 mm Max. Dia. × 20 mm Shank Dia. × 122 mm OAL × 48 mm LU × 50 mm Shank Length ; 3D ; Flanged Shank ; Series DRC
| Cutting Diameter (DC) | 15 mm to 15.99 mm | Overall Length (OAL) | 122 mm |
| Usable Length (LU) | 48 mm | Shank Length (LS) | 50 mm |
| Length Group | 3D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Flanged | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Style | SF DRC |
| Insert Seat Size Code (SSC) | 80 | Master Insert Identification (MIID) | DC1500M-SC ~ DC1580M-SC |
| Cutting Diameter Minimum (DCN) | 15 mm | Series/List # | DRC |
| Cutting Diameter Maximum (DCX) | 15.99 mm | Body Material | Steel |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.465
