SS16DRC145M5, DRC Magic Drill 14.50-14.99mm Cutting Diameter, 5xD, Replaceable Tip Drill

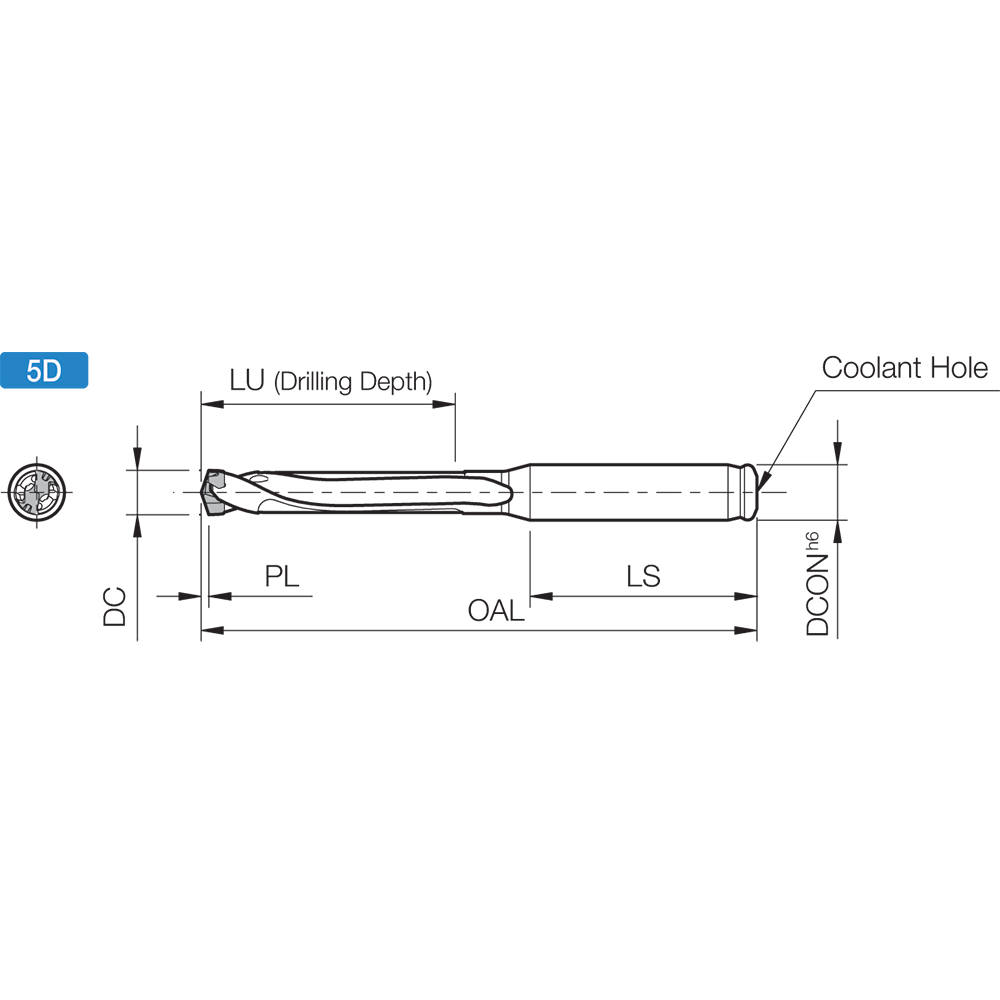

Drill; 14.5 mm to 14.99 mm Dia. × 14.5 mm Min. Dia. × 14.99 mm Max. Dia. × 16 mm Shank Dia. × 146 mm OAL × 75 mm LU × 48 mm Shank Length ; 5D ; Round Shank ; Series DRC
| Cutting Diameter (DC) | 14.5 mm to 14.99 mm | Overall Length (OAL) | 146 mm |
| Usable Length (LU) | 75 mm | Shank Length (LS) | 48 mm |
| Length Group | 5D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Style | SS DRC |
| Insert Seat Size Code (SSC) | 80 | Master Insert Identification (MIID) | DC1450M-SC ~ DC1490M-SC |
| Cutting Diameter Minimum (DCN) | 14.5 mm | Series/List # | DRC |
| Cutting Diameter Maximum (DCX) | 14.99 mm | Body Material | Steel |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.374
