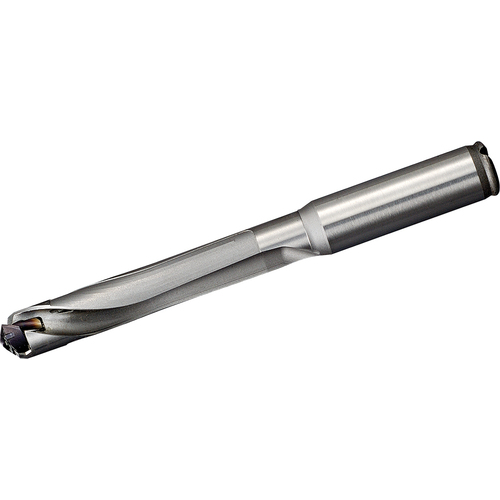

SS12DRC115M3, DRC Magic Drill 11.50-11.99mm Cutting Diameter, 3xD, Replaceable Tip Drill
Drill; 11.5 mm to 11.99 mm Dia. × 11.5 mm Min. Dia. × 11.99 mm Max. Dia. × 12 mm Shank Dia. × 98 mm OAL × 36 mm LU × 45 mm Shank Length ; 3D ; Round Shank ; Series DRC

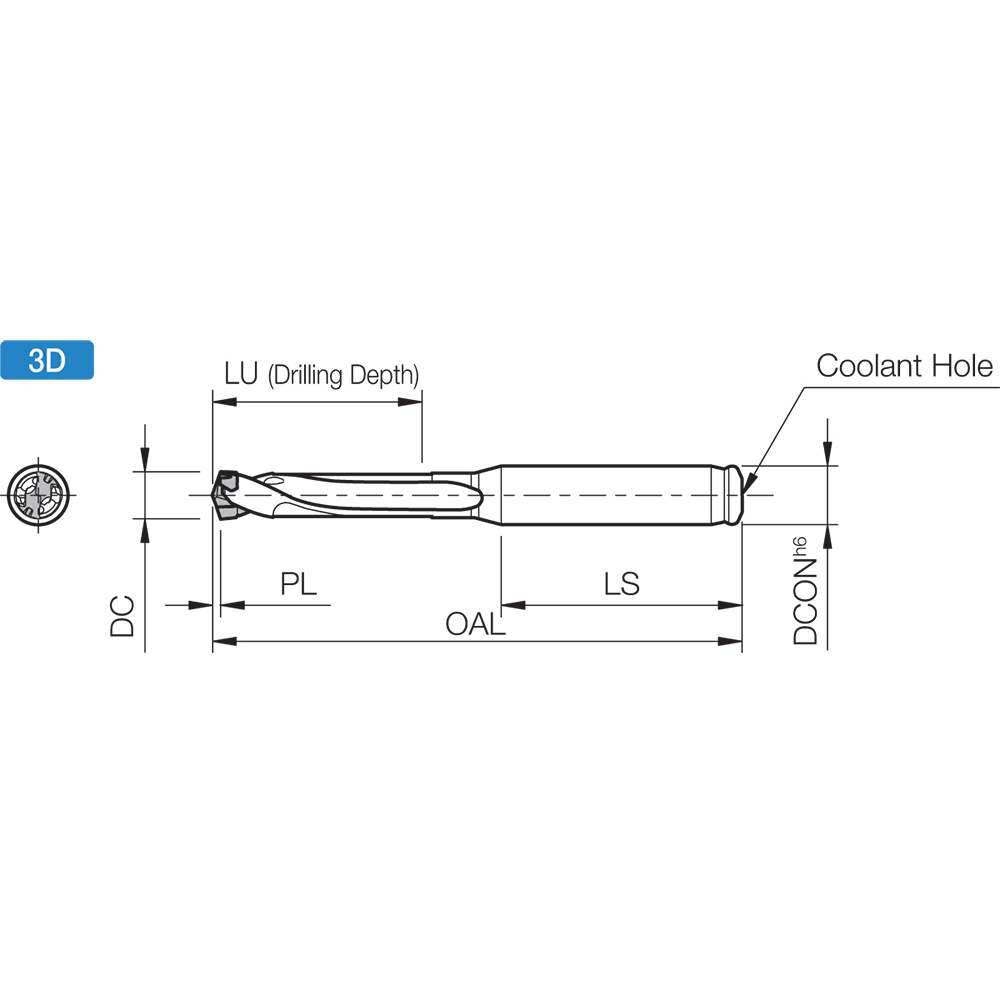

| Cutting Diameter (DC) | 11.5 mm to 11.99 mm | Overall Length (OAL) | 98 mm |
| Usable Length (LU) | 36 mm | Shank Length (LS) | 45 mm |
| Length Group | 3D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Style | SS DRC |
| Insert Seat Size Code (SSC) | 80 | Master Insert Identification (MIID) | DC1150M-SC ~ DC1190M-SC |
| Cutting Diameter Minimum (DCN) | 11.5 mm | Series/List # | DRC |
| Cutting Diameter Maximum (DCX) | 11.99 mm | Body Material | Steel |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.231
