SS10DRC080M8, DRC Magic Drill 7.94-8.49mm Cutting Diameter, 8xD, Replaceable Tip Drill

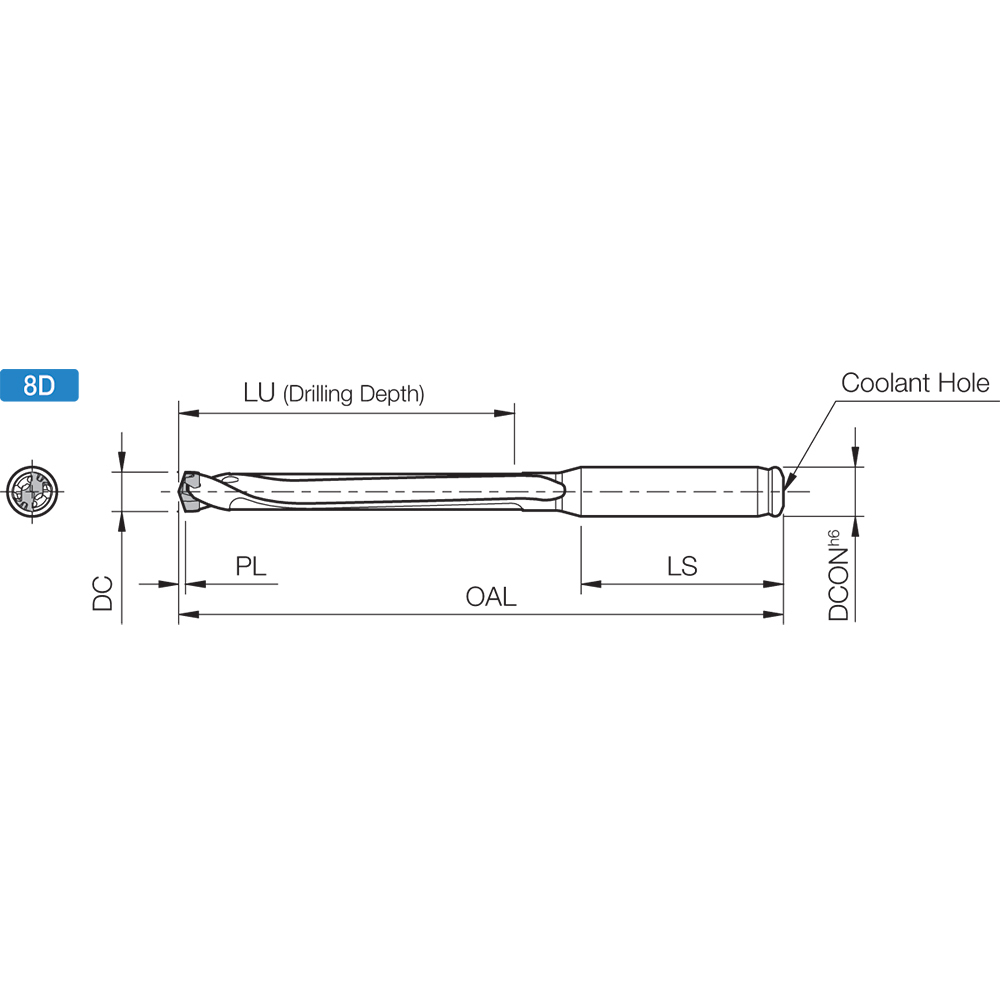

Drill; 7.94 mm to 8.49 mm Dia. × 7.94 mm Min. Dia. × 8.49 mm Max. Dia. × 10 mm Shank Dia. × 122.5 mm OAL × 68 mm LU × 40 mm Shank Length ; 8D ; Round Shank ; Series DRC
| Cutting Diameter (DC) | 7.94 mm to 8.49 mm | Overall Length (OAL) | 122.5 mm |
| Usable Length (LU) | 68 mm | Shank Length (LS) | 40 mm |
| Length Group | 8D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Style | SS DRC |
| Insert Seat Size Code (SSC) | 80 | Master Insert Identification (MIID) | DC0794M-SC ~ DC0840M-SC |
| Cutting Diameter Minimum (DCN) | 7.94 mm | Series/List # | DRC |
| Cutting Diameter Maximum (DCX) | 8.49 mm | Body Material | Steel |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.168
