SF32DRA290M8, DRA Magic Drill 29.00-29.99mm Cutting Diameter, 8xD, Replaceable Tip Drill

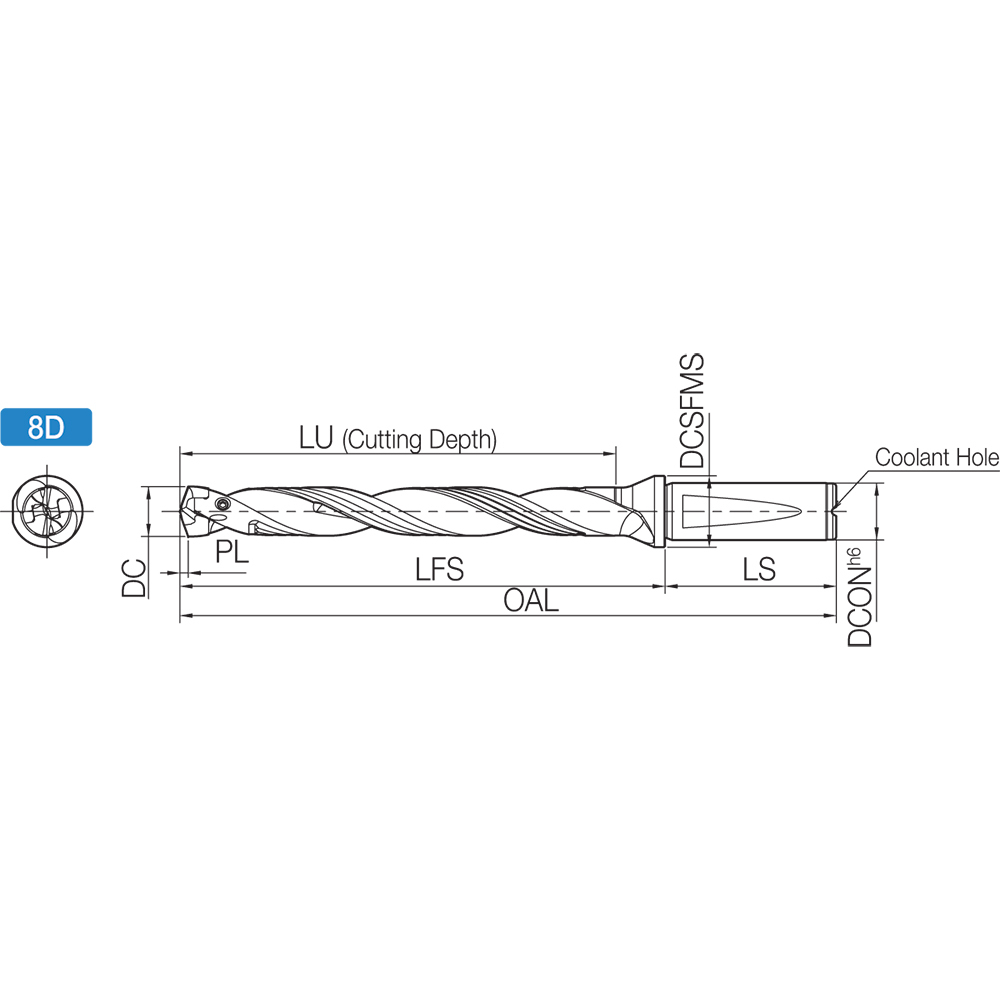

Drill; 29 mm to 29.99 mm Dia. × 29 mm Min. Dia. × 29.99 mm Max. Dia. × 32 mm Shank Dia. × 339 mm OAL × 240 mm LU × 58 mm Shank Length ; 8D ; Flanged Shank ; Series DRA
| Cutting Diameter (DC) | 29 mm to 29.99 mm | Overall Length (OAL) | 339 mm |
| Usable Length (LU) | 240 mm | Shank Length (LS) | 58 mm |
| Length Group | 8D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Flanged | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Style | SS DRA |
| Insert Seat Size Code (SSC) | 290 | Master Insert Identification (MIID) | DA2900M- ~ DA2950M- |
| Cutting Diameter Minimum (DCN) | 29 mm | Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 29.99 mm | Body Material | Steel |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
3.314
