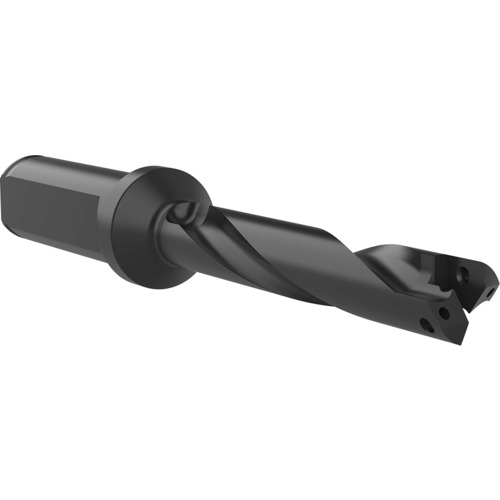

3/4X5-21/32 SPADE DRILL
Drill; 33/64″ to 11/16″ Dia. × 3/4″ Shank Dia. × 2-1/2″ LU × 2-1/32″ Shank Length ; Round Shank
| Cutting Diameter (DC) | 33/64″ to 11/16″ | Shank Length (LS) | 2-1/32″ |
| Usable Length (LU) | 2-1/2″ | Measurement Type | Inch |
| Shank Type | Round | Flute Type | Helical |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Decimal Equivalent | 0.515625″ to 0.6875″ |
| Protruding Length (LPR) | 3-5/8″ |
Product Features
| Remarks | •T-A® Drill Insert HoldersCoolant Fed Flanged and Straight Shank •T-A® Drill Insert holders are also available in XLand 3XLlengths including metric versions of most sizes. Call for pricing. When using the Extended, Long, XL and 3XL holders without a support bushing, AMEC recommends using a short T-A® holder to establish an initial hole two to three times diameters deep Never start or continue rotation of this tool holder without proper engagement with a work piece or fixture. Failure to do so could result in tool failure and/or personal injury. Series 0.5, 1.5 and 2.5 TA® Drill Insert Holders are available with a larger body diameter than the standard series, which yields added support for drill inserts and higher inertial strength. This reduces holder failure in high torque applications. Call for pricing. | Country of Origin | USA |
Shipping Info
Package Length
6.00000
Package Width
1.10000
Package Height
1.10000
Package Weight
0.45
