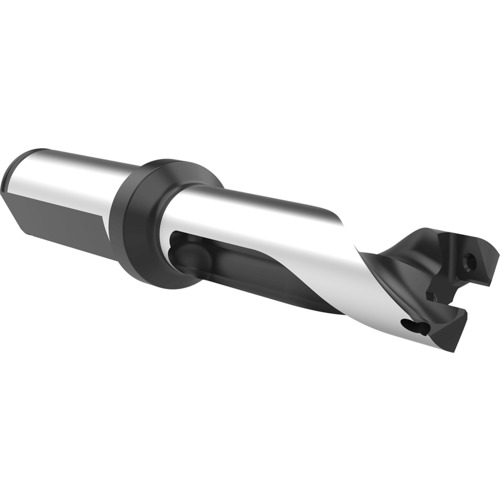

Series 17 - Straight FL-20mm SH Dia-54mm Drill Depth - Spade Drill Holder
Drill; 0.6693″ to 0.7086″ Dia. × 20 mm Shank Dia. × 134.2 mm OAL × 54 mm LU × 50 mm Shank Length ; 3D ; Flange Shank ; Series 17
| Usable Length (LU) | 54 mm | Protruding Length (LPR) | 84.1 mm |
| Length Group | 3D | Shank Length (LS) | 41.9 mm |
| Shank Type | Round | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Flute Type | Straight |
Product Features
| Remarks | •The GEN3SYS High Penetration Drilling System penetrates up to 35% faster than competitive drilling products. •Allied Machine & Engineering Corp.'s proprietary AM200 coating increases tool life up to 50% above competitor's premium coatings. •The unique geometry of the GEN3SYS High Penetration Drilling System enables excellent chip control while drilling elastic materials. •The GEN3SYS High Penetration Drilling System has a highly precise locating pad for absolute repeatability and reductions in TIR. •The helical margin design of the GEN3SYS enables maximum durablility and stability when cutting forces are applied. •The innovative design of the GEN3SYS High Penetration Drilling System increases hole quality, surface finish, and true position over competitive products. | Country of Origin | USA |
Shipping Info
Package Weight
.390
