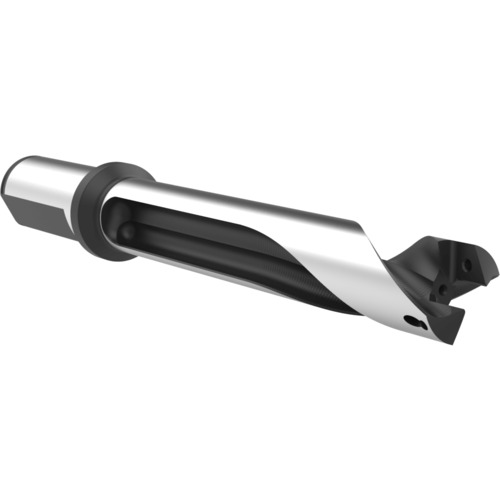

24MM 5X GEN3SYS HLD 25 FLG GEN3SYS XT ST HOLDER
Drill; 24 mm to 26 mm Dia. × 25 mm Shank Dia. × 221.8 mm OAL × 129.9 mm LU × 56 mm Shank Length ; 5D ; Flange Shank ; Series 24
| Usable Length (LU) | 129.9 mm | Cutting Diameter Maximum (DCX) | 25.99 mm |
| Length Group | 5D | Functional Length (LF) | 165.8 mm |
| Shank Type | Weldon | Overall Length (OAL) | 221.8 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 24 mm | Flute Type | Straight |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.110
