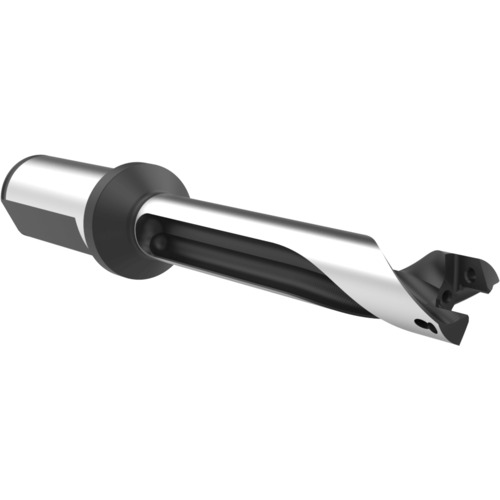

18MM 5X GEN3SYS HLD 20 FLG GEN3SYS XT ST HOLDER
Drill; 18 mm to 20 mm Dia. × 20 mm Shank Dia. × 184 mm OAL × 99.9 mm LU × 50 mm Shank Length ; 5D ; Flange Shank ; Series 18
| Usable Length (LU) | 99.9 mm | Cutting Diameter Maximum (DCX) | 19.99 mm |
| Length Group | 5D | Functional Length (LF) | 134 mm |
| Shank Type | Weldon | Overall Length (OAL) | 184 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 18 mm | Flute Type | Straight |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.64
