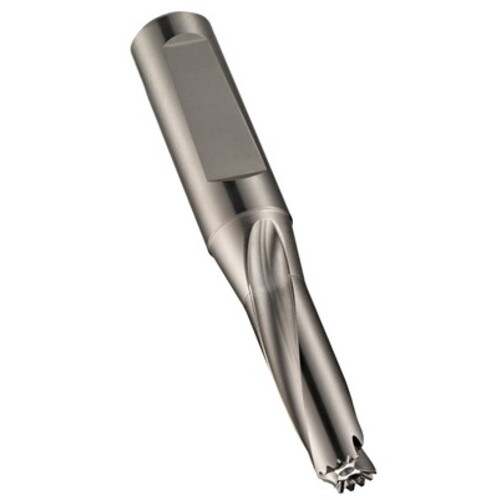

25.00 MM Dormer HSS Bright HYDRA Int. Coolant Hydra Body 3xD E-code # H85325.0
Drill; 25 mm Dia. × 12 mm Min. Dia. × 42.5 mm Max. Dia. × 170 mm OAL × 60 mm Shank Length ; 3D ; Weldon Shank ; Series H853
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 25 mm | Cutting Edge Material | HSS |
| Length Group | 3D | Measurement Type | Metric |
| Shank Type | Weldon | Style | HYDRA |
| Tool Type | Drills | Helix Angle | CW |
| Cutting Diameter Minimum (DCN) | 12 mm | Series/List # | H853 |
| Cutting Diameter Maximum (DCX) | 42.5 mm | Coating | Uncoated |
| Protruding Length (LPR) | 88 mm | Standard Pack Size | 1 |
| Overall Length (OAL) | 170 mm | Body Material | HSS Material |
| Shank Length (LS) | 60 mm | Decimal Equivalent | 0.9843″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | E-code # H85325.0 | Country of Origin | Japan |
Shipping Info
Package Weight
27.405
