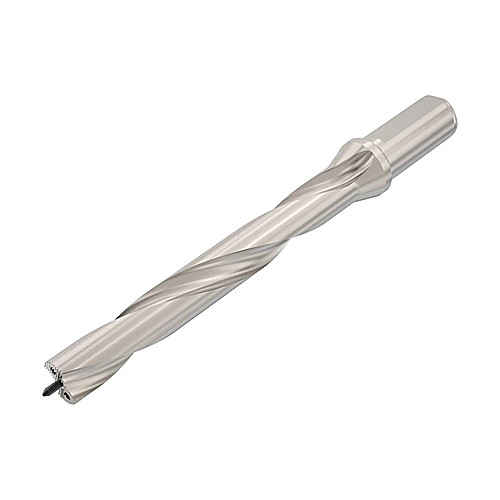

O CROWNLOC DRILL BODIES - MODEL # SD107-22.00/23.99-175-1000R7; 10.413 OVERALL LENGTH; WELDON SHANK; 1 SHANK DIAMETER
Drill; 21.5 mm Dia. × 22 mm Min. Dia. × 23.99 mm Max. Dia. × 25.4 mm Shank Dia. × 264.5 mm OAL × 175 mm LU × 56 mm Shank Length ; 7D ; Weldon Shank
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 21.5 mm | Protruding Length (LPR) | 188.5 mm |
| Usable Length (LU) | 175 mm | Functional Length (LF) | 208.5 mm |
| Length Group | 7D | Overall Length (OAL) | 264.5 mm |
| Shank Type | Weldon | Shank Length (LS) | 56 mm |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 22 mm | Cutting Item Count (CICT) | 1 |
| Cutting Diameter Maximum (DCX) | 23.99 mm | Decimal Equivalent | 0.8465″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
1.21
