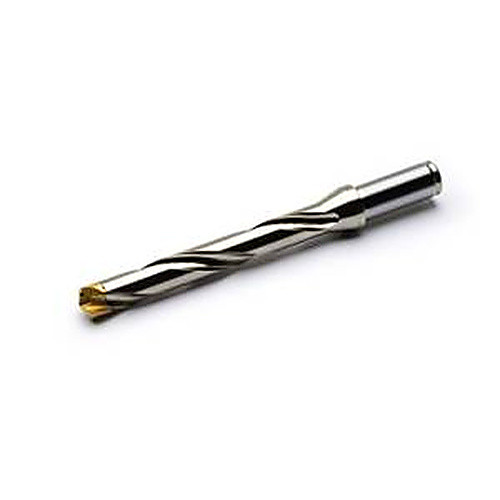

O CROWNLOC DRILL BODIES - MODEL # SD107-16.00/16.99-110-0625R7; 7.461 OVERALL LENGTH; WELDON SHANK; 0.625 SHANK DIAMETER
Drill; 15.5 mm Dia. × 16 mm Min. Dia. × 16.99 mm Max. Dia. × 15.88 mm Shank Dia. × 189.5 mm OAL × 110 mm LU × 48 mm Shank Length ; 7D ; Weldon Shank
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 15.5 mm | Protruding Length (LPR) | 123.5 mm |
| Usable Length (LU) | 110 mm | Functional Length (LF) | 141.5 mm |
| Length Group | 7D | Overall Length (OAL) | 189.5 mm |
| Shank Type | Weldon | Shank Length (LS) | 48 mm |
| Connection Diameter Machine Side (DCONMS) | 15.88 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 16 mm | Cutting Item Count (CICT) | 1 |
| Cutting Diameter Maximum (DCX) | 16.99 mm | Decimal Equivalent | 0.6102″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.406
