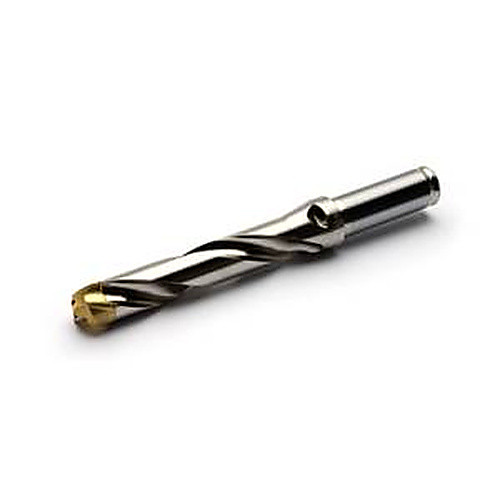

O CROWNLOC DRILL BODIES - MODEL # SD105-18.00/18.99-95-0750R7; 6.996 OVERALL LENGTH; WELDON SHANK; 0.75 SHANK DIAMETER
Drill; 17.5 mm Dia. × 18 mm Min. Dia. × 18.99 mm Max. Dia. × 25.4 mm Shank Dia. × 177.7 mm OAL × 95 mm LU × 50 mm Shank Length ; 5D ; Weldon Shank
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 17.5 mm | Protruding Length (LPR) | 108.7 mm |
| Usable Length (LU) | 95 mm | Functional Length (LF) | 127.7 mm |
| Length Group | 5D | Overall Length (OAL) | 177.7 mm |
| Shank Type | Weldon | Shank Length (LS) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 18 mm | Cutting Item Count (CICT) | 1 |
| Cutting Diameter Maximum (DCX) | 18.99 mm | Decimal Equivalent | 0.689″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.701
