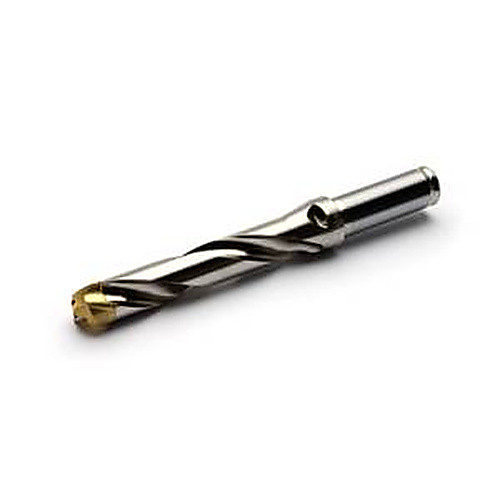

O CROWNLOC DRILL BODIES - MODEL # SD105-17.00/17.99-95-0750R7; 6.957 OVERALL LENGTH; WELDON SHANK; 0.75 SHANK DIAMETER
Drill; 16.5 mm Dia. × 17 mm Min. Dia. × 17.99 mm Max. Dia. × 25.4 mm Shank Dia. × 176.7 mm OAL × 95 mm LU × 50 mm Shank Length ; 5D ; Weldon Shank
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 16.5 mm | Protruding Length (LPR) | 107.7 mm |
| Usable Length (LU) | 95 mm | Functional Length (LF) | 126.7 mm |
| Length Group | 5D | Overall Length (OAL) | 176.7 mm |
| Shank Type | Weldon | Shank Length (LS) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 17 mm | Cutting Item Count (CICT) | 1 |
| Cutting Diameter Maximum (DCX) | 17.99 mm | Decimal Equivalent | 0.6496″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.659
