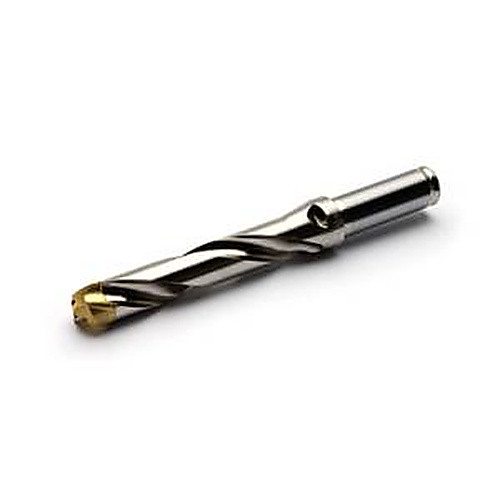

O CROWNLOC DRILL BODIES - MODEL # SD105-10.50/10.99-50-0625R7; 4.748 OVERALL LENGTH; WELDON SHANK; 0.625 SHANK DIAMETER
Drill; 10 mm Dia. × 10.5 mm Min. Dia. × 10.99 mm Max. Dia. × 15.88 mm Shank Dia. × 120.6 mm OAL × 50 mm LU × 48 mm Shank Length ; 5D ; Weldon Shank
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 10 mm | Protruding Length (LPR) | 57.3 mm |
| Usable Length (LU) | 50 mm | Functional Length (LF) | 72.6 mm |
| Length Group | 5D | Overall Length (OAL) | 120.6 mm |
| Shank Type | Weldon | Shank Length (LS) | 48 mm |
| Connection Diameter Machine Side (DCONMS) | 15.88 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 10.5 mm | Cutting Item Count (CICT) | 1 |
| Cutting Diameter Maximum (DCX) | 10.99 mm | Decimal Equivalent | 0.3937″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.392
