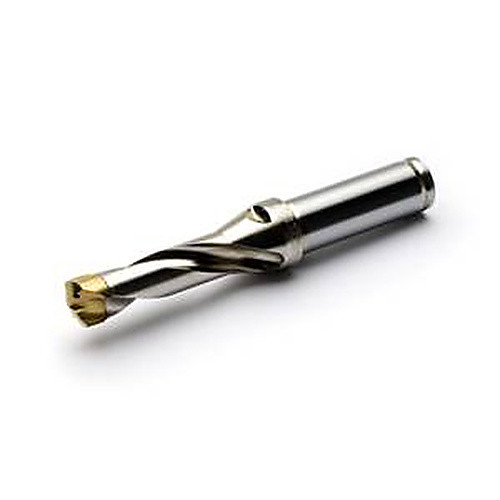

O CROWNLOCK - SD103-09.50/09.99-30-0625R7
Drill; 9 mm Dia. × 9.5 mm Min. Dia. × 9.99 mm Max. Dia. × 15.88 mm Shank Dia. × 108 mm OAL × 30 mm LU × 50 mm Shank Length ; 3D ; Weldon Shank
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 9 mm | Protruding Length (LPR) | 46.6 mm |
| Usable Length (LU) | 30 mm | Functional Length (LF) | 59 mm |
| Length Group | 3D | Overall Length (OAL) | 108 mm |
| Shank Type | Weldon | Shank Length (LS) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 15.88 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 9.5 mm | Cutting Item Count (CICT) | 1 |
| Cutting Diameter Maximum (DCX) | 9.99 mm | Decimal Equivalent | 0.3543″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.373
