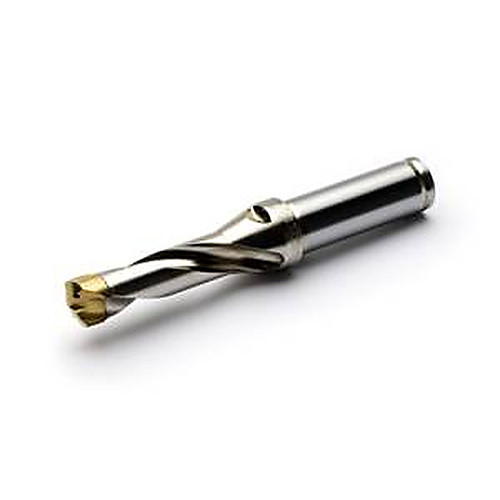

O CROWNLOC DRILL BODIES - MODEL # SD103-15.00/15.99-50-0625R7; 5.051 OVERALL LENGTH; WELDON SHANK; 0.625 SHANK DIAMETER
Drill; 14.5 mm Dia. × 15 mm Min. Dia. × 15.99 mm Max. Dia. × 15.88 mm Shank Dia. × 128.3 mm OAL × 50 mm LU × 48 mm Shank Length ; 3D ; Weldon Shank
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 14.5 mm | Protruding Length (LPR) | 60.3 mm |
| Usable Length (LU) | 50 mm | Functional Length (LF) | 80.3 mm |
| Length Group | 3D | Overall Length (OAL) | 128.3 mm |
| Shank Type | Weldon | Shank Length (LS) | 48 mm |
| Connection Diameter Machine Side (DCONMS) | 15.88 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 15 mm | Cutting Item Count (CICT) | 1 |
| Cutting Diameter Maximum (DCX) | 15.99 mm | Decimal Equivalent | 0.5709″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.441
