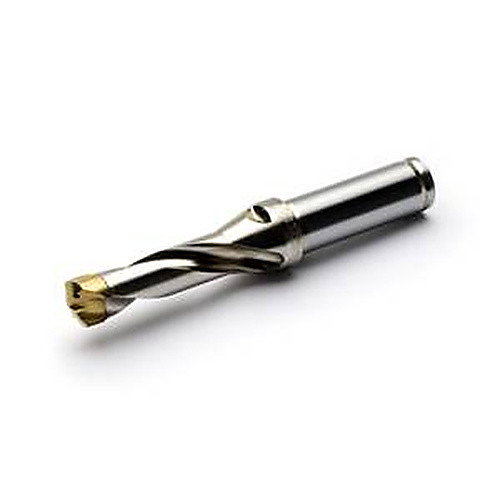

O CROWNLOC DRILL BODIES - MODEL # SD103-12.00/12.49-40-0625R7; 4.567 OVERALL LENGTH; WELDON SHANK; 0.625 SHANK DIAMETER
Drill; 11.5 mm Dia. × 12 mm Min. Dia. × 12.49 mm Max. Dia. × 15.88 mm Shank Dia. × 116 mm OAL × 40 mm LU × 48 mm Shank Length ; 3D ; Weldon Shank
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 11.5 mm | Protruding Length (LPR) | 48 mm |
| Usable Length (LU) | 40 mm | Functional Length (LF) | 68 mm |
| Length Group | 3D | Overall Length (OAL) | 116 mm |
| Shank Type | Weldon | Shank Length (LS) | 48 mm |
| Connection Diameter Machine Side (DCONMS) | 15.88 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 12 mm | Cutting Item Count (CICT) | 1 |
| Cutting Diameter Maximum (DCX) | 12.49 mm | Decimal Equivalent | 0.4528″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.254
