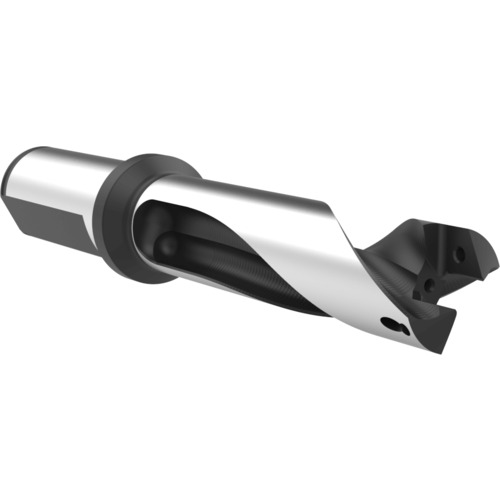

26MM 3X GEN3SYS HLD 32 FLG GEN3SYS XT ST HOLDER
Drill; 26 mm to 29 mm Dia. × 32 mm Shank Dia. × 188.1 mm OAL × 87 mm LU × 60 mm Shank Length ; 3D ; Flange Shank ; Series 26
| Usable Length (LU) | 87 mm | Cutting Diameter Maximum (DCX) | 28.99 mm |
| Length Group | 3D | Functional Length (LF) | 128.1 mm |
| Shank Type | Weldon | Overall Length (OAL) | 188.1 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 26 mm | Flute Type | Straight |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.400
