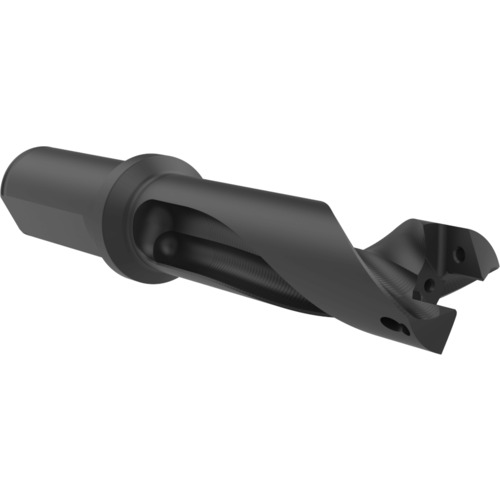

26MM 3X GEN3SYS HLD 1-1/4″ FLG GEN3SYS XT ST HOLDER
Drill; 1.0236″ to 1.1416″ Dia. × 1-1/4″ Shank Dia. × 7-11/32″ OAL × 3-27/64″ LU × 2-9/32″ Shank Length ; 3D ; Flange Shank ; Series 26
| Usable Length (LU) | 3-27/64″ | Cutting Diameter Maximum (DCX) | 1.142″ |
| Length Group | 3D | Functional Length (LF) | 5-1/16″ |
| Shank Type | Weldon | Overall Length (OAL) | 7-11/32″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 1.024″ | Flute Type | Straight |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.400
