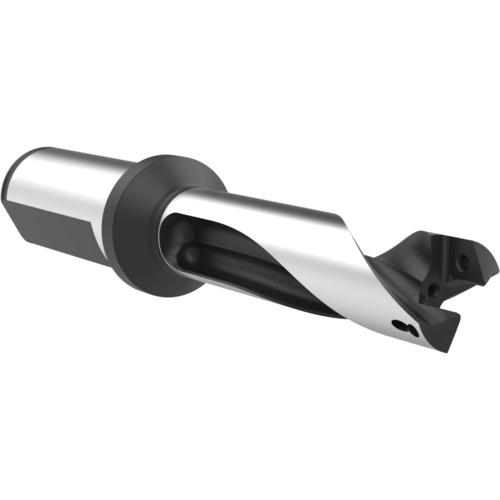

20MM 3X GEN3SYS HLD 25 FLG GEN3SYS XT ST HOLDER
Drill; 20 mm to 22 mm Dia. × 25 mm Shank Dia. × 156.1 mm OAL × 66 mm LU × 56 mm Shank Length ; 3D ; Flange Shank ; Series 20
| Usable Length (LU) | 66 mm | Cutting Diameter Maximum (DCX) | 21.99 mm |
| Length Group | 3D | Functional Length (LF) | 100.1 mm |
| Shank Type | Weldon | Overall Length (OAL) | 156.1 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 20 mm | Flute Type | Straight |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.780
