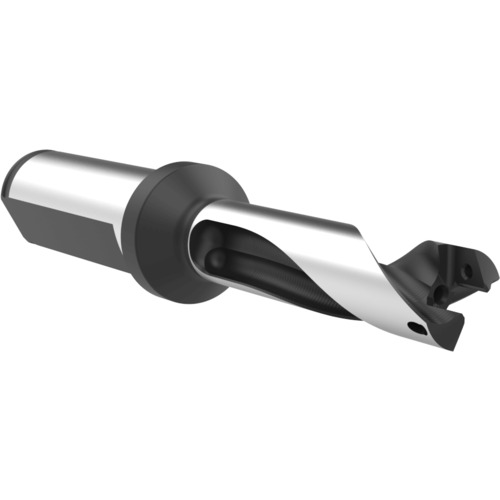

14MM 3X GEN3SYS HLD 20 FLG GEN3SYS XT ST HOLDER
Drill; 14 mm to 15 mm Dia. × 20 mm Shank Dia. × 122.4 mm OAL × 45 mm LU × 50 mm Shank Length ; 3D ; Flange Shank ; Series 14
| Usable Length (LU) | 45 mm | Cutting Diameter Maximum (DCX) | 14.99 mm |
| Length Group | 3D | Functional Length (LF) | 72.4 mm |
| Shank Type | Weldon | Overall Length (OAL) | 122.4 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 14 mm | Flute Type | Straight |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.340
